JM-LL01
The JM-LL01 is a Cat M1/NB-IoT asset tracker with an ultra-long standby time. Depending on reporting frequency, its low consumption internal battery can provide up to 3 years of working time on a single charge. The JM-LL01’s strong magnetic mount allows for effortless installation onto almost any metal surface, and a light sensor will be triggered and an alert sent once detachment occurs, helping users to feel totally assured that their assets are under constant protection.
- GPS+WIFI + LBS positioning
- Real-time location query
- Geo-fence alert
- Tamper alert
- Cover remove alert
- Strong magnet mount
- 10,000mAh battery powered
- IP65 dust and water resistant

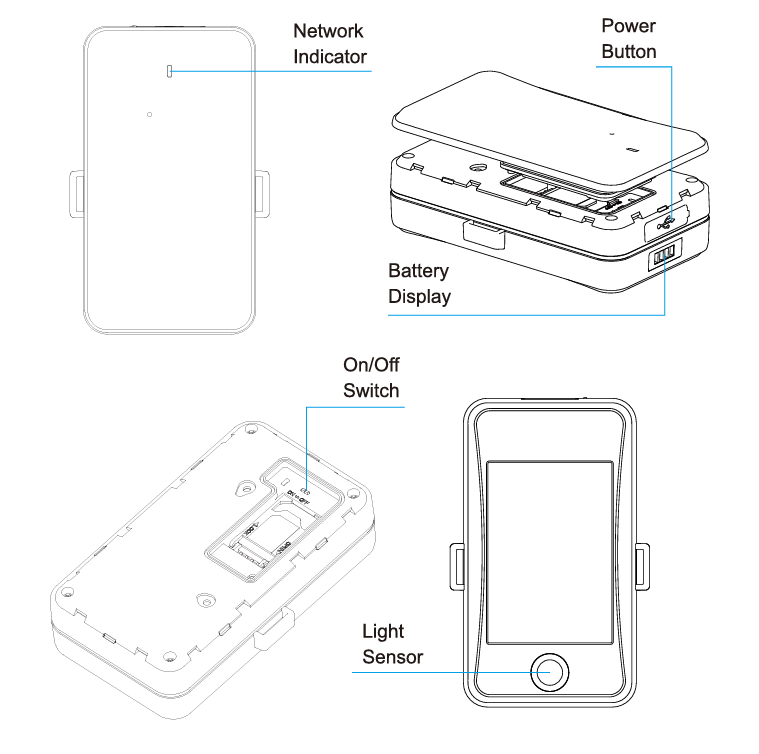

Pinout
- Find the notch and remove the upper cover and TPU part.
- Power switch
- Slide the retainer backward and rotate it up, and insert the SIM card into it, then rotate it down and slide it frontward.
- Toggle the power switch to ON.
- Return the TPU part and the upper cover.
- Hold and press the power button (near the battery display) to power on/off the device at your will.
- Mount the device on iron surface.

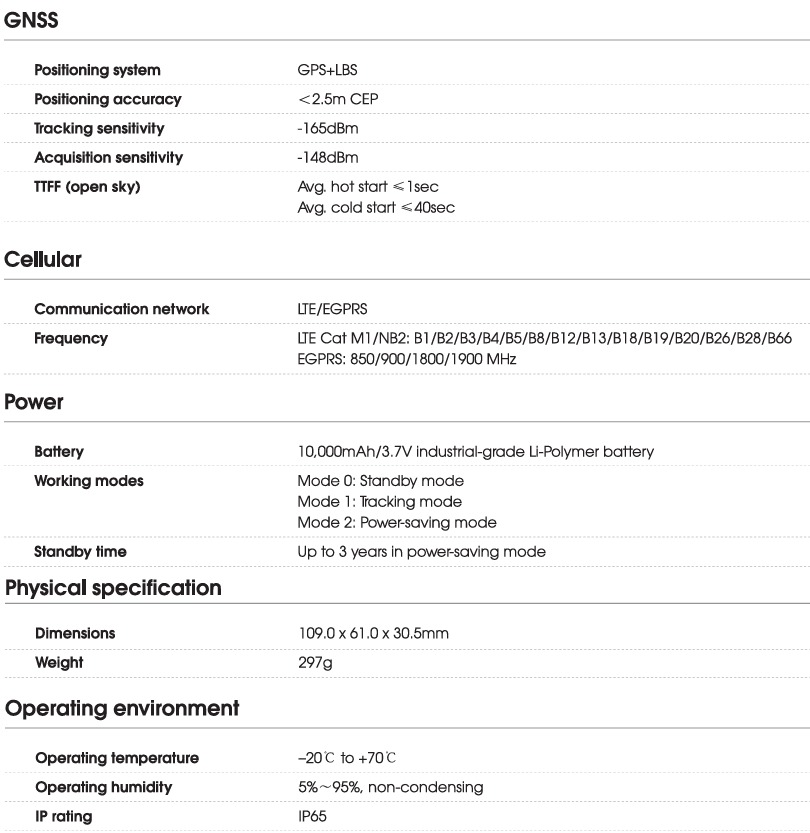

Technical Specification
notes
- It exclusively relies on GPS signals for tracking, without the need for any sensor connections With 4G network
- The device can be set up and managed via messaging, enabling control over various features and parameters through message-based commands.
- Device commands:
- Set APN: (VERY IMPORTANT AND MUST BE DONE 1ST) For the device to send data to the server, this command MUST be enabled
- Set IP: (VERY IMPORTANT AND MUST BE DONE 1ST) For the device to send data to the server, this command MUST be enabled
- Set MODE: configure the device data collection and sending periods
- The device can be configured via Bluetooth and an iOS application, although this functionality isn't utilized. Further details can befound in the reference link provided.
