Ruptela FM-Eco4
All Eco 4 devices have internal GSM and GNSS antennas and are equipped with internal backup batteries. In addition to the standard option of the compact IP30 housing, also available with IP67 rated housing
- Real-time data from GPS and accelerometer
- Remote ignition blocking
- Internal geofences
- Driver behavior monitoring (Eco-Drive)
- Temperature monitoring
- Driver registration and identification
- Impact and rollover detection
- Additional sensors and peripheral
Pinout
Technical Specification
notes
- Eco 4 is a tracking device (2G) without an internal battery and with regular housing, small size and internal antennas
- Configuration files uploaded by Fota
- The device can be set up and managed via messaging, enabling control over various features and parameters through message-based commands.
- You have the flexibility to modify various parameters and create messages within the advanced mode configuration.
- Most devices have password before the command (aqy@159)
- You can check the I/O status using the following commands: getio
- For every command sent to the device, it responds with a corresponding reply.

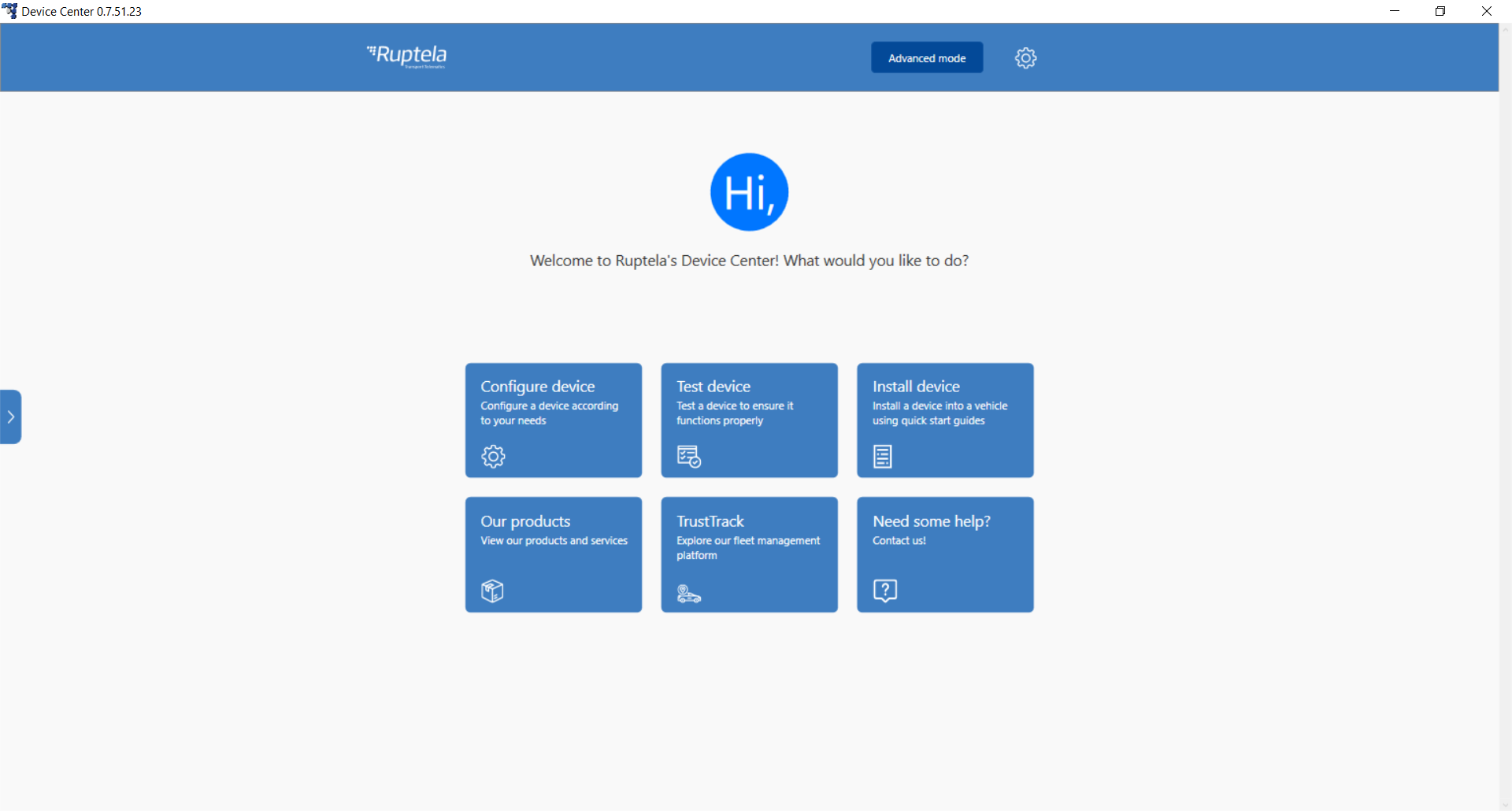

- The configurator offers two modes: normal and advanced. We recommend utilizing the advanced mode as it encompasses all available features.
- Normal mode
- Advanced mode

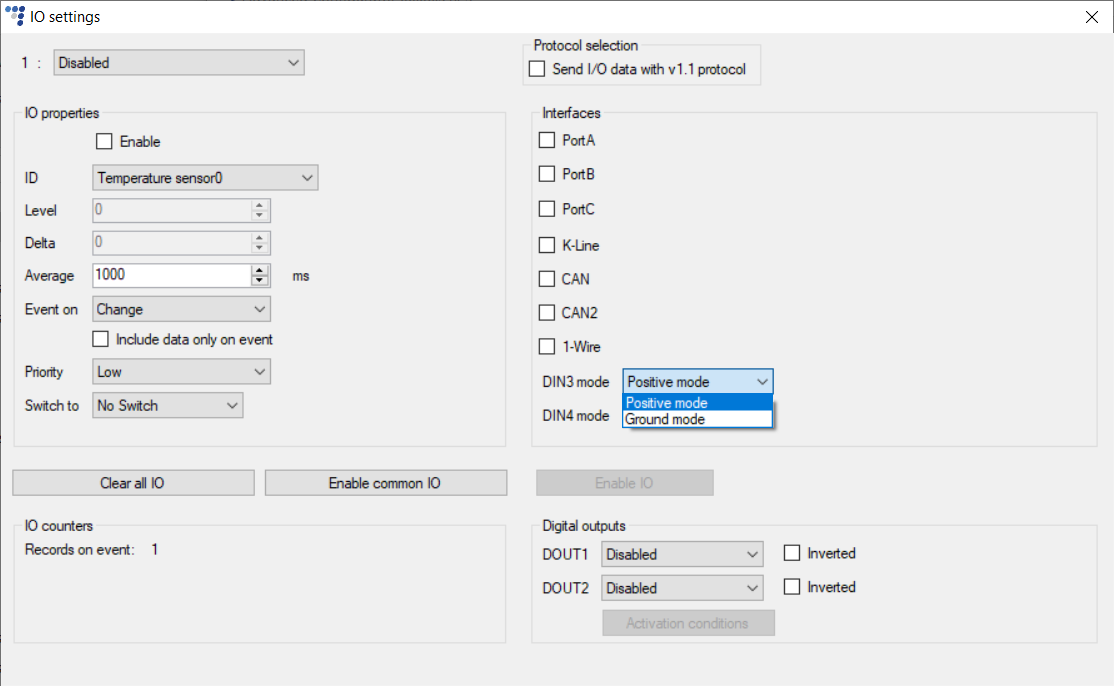

- Digital input modes : In Input Mode settings, the user can choose which configurable input will be use: DIN2/AIN1 or Ground Sense. If Ground Sense is selected, the input will act as an inverse digital Input, where a low voltage level will output 1 using the Ground Sense I/O element, and a high voltage level will output 0.

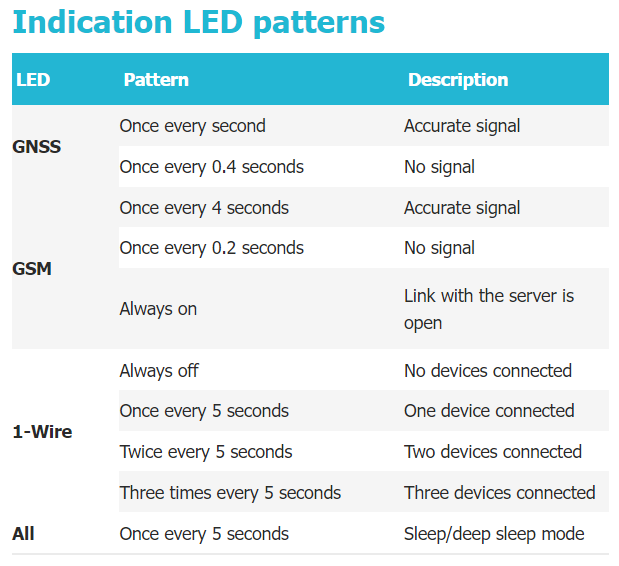

- Check device led behavior on the following:

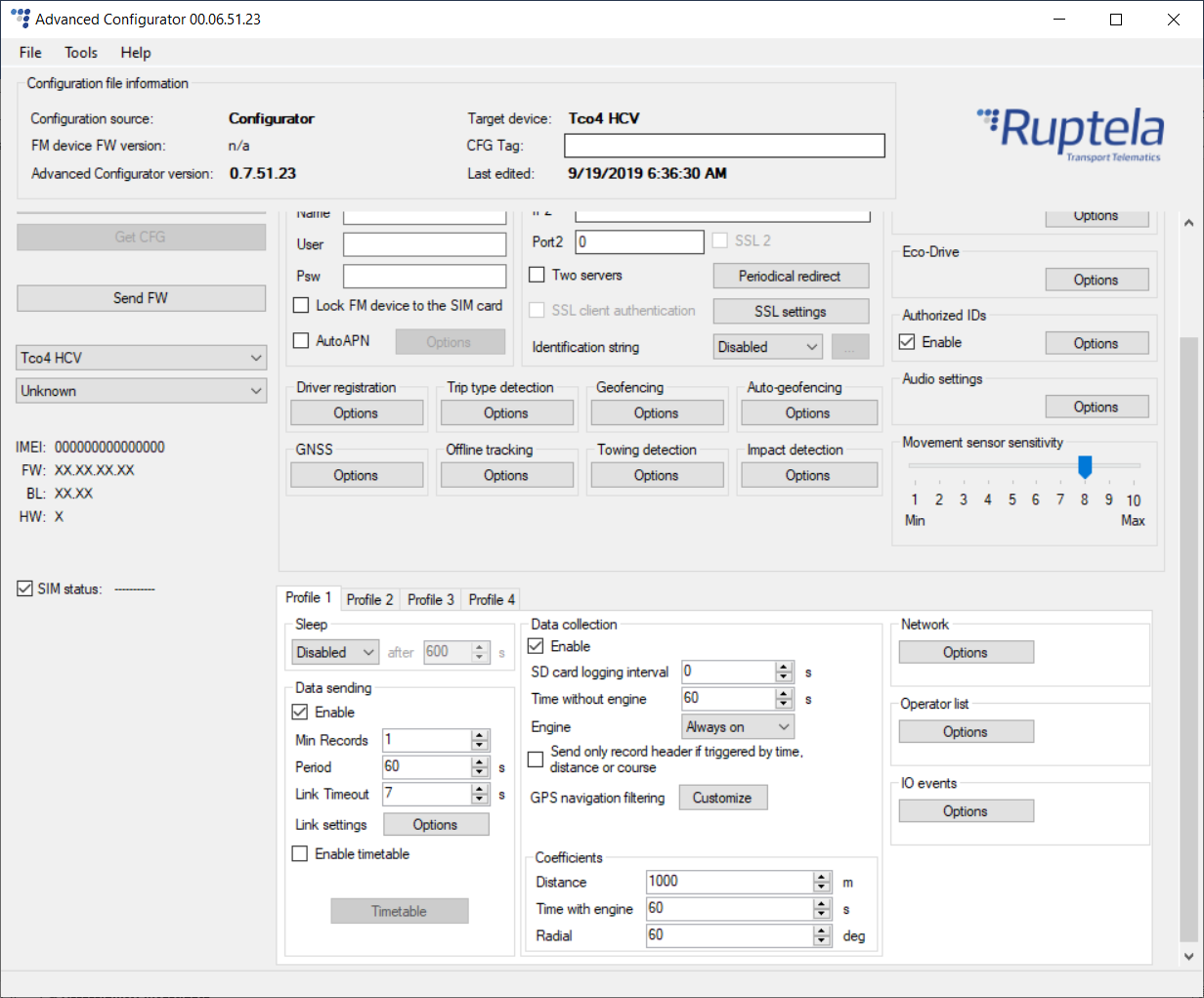

- Check advanced configurator on the following link: Advanced Configurator
- Check Normal configurator on the following link: Normal Configurator
compatible sensors
TSH202 VA
Load Sensor
Pressure Sensor
Buzzer
Door Sensor
immobilizer
Panic Button
I-Button
