BCE LIGHT +
.jpg)
- Track & trace
- Eco driving
- Geofencing and overspeeding
- Fuel level sensors (analog, frequency and digital)
- Driver identification
- RFID support
- Temperature/humidity sensors
- CAN-log connection
- Remote output control and immobilization
Pinout
- Inputs
- 4x digital (frequency, impulse counter, ON/OFF modes);
- 3x analogue, 11 bit, 0-31V.
- Outputs
- 3x digital, (-).
- Interfaces
- 1-Wire;
- RS-232;
- EIA-485.
- Power supply
- 9 – 31V;
- Protection from impulses up to 150V;
- Registration of power cut-off to device event log;
- Internal battery 210/850 mAh (optional).

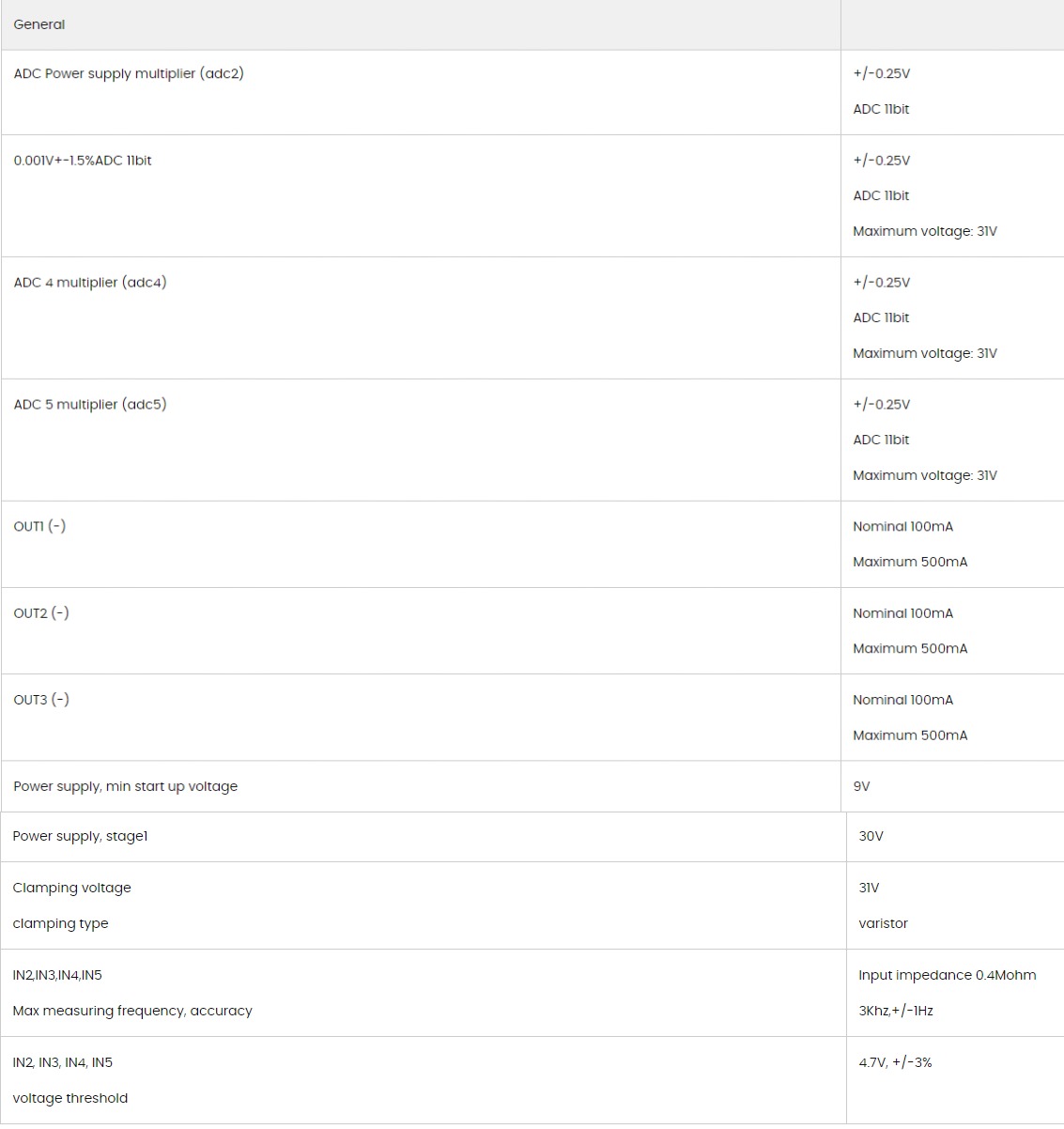

Technical Specification
notes
- Best Firmware For light+ Devices
-Version G (G011 & GD11)
-Version S (SDTM & SCTM & SD1E & ST1E)
- Worst Firmware For light+ Devices
-Version G (G00L & GD0L & G00V)
-Version S (SCRF & SDR0 & SDP1)
- Change any device Version Z or any other version except ( G& S ) because it is EOL
- There exists an SDK version of Light+ that exhibits SDK device behavior, allowing us to embed scripts within it.
- Tzone and Soway sensors are compatible with light+ SDk
- Reference configuration : autoworld
- Check device led behavior on the following link: led behavior
compatible sensors
TSH202 (TER3)
Asong
Load Sensor
Pressure Sensor
Buzzer
Door Sensor
immobilizer
Panic Button
RFID Reader
I-Button
