RFID Reader
RFID Reader
- allows you to read information from various types of cards, such as credit cards, debit cards, identification (ID) cards, and memory cards.
- It commonly used as a gate ID.

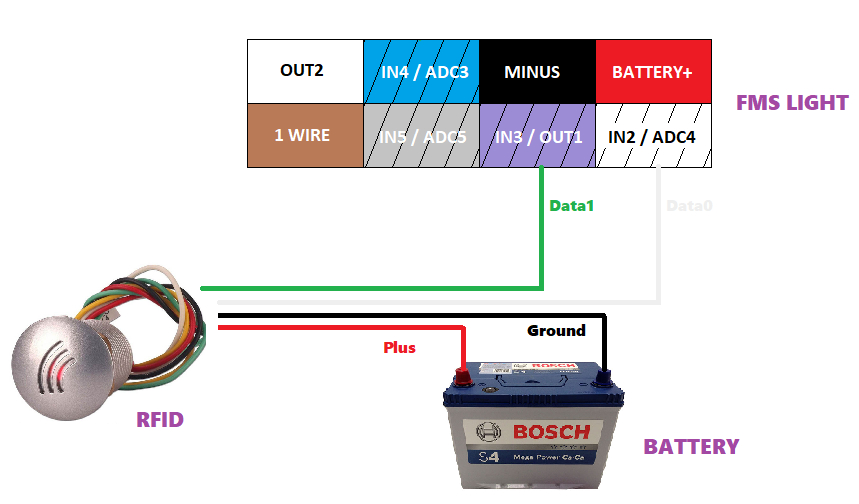

Pinout
- Red -----> Power
- Black -----> Ground
- White (Data0) -----> IN2/ADC4
- Green (Data1) -----> IN3/Out1
notes
- Compatible with any device with 2 digital input and Wiegand26 protocol
- read from RFID, will come in wie parameter for regular devices
- Configuration example (BCE):

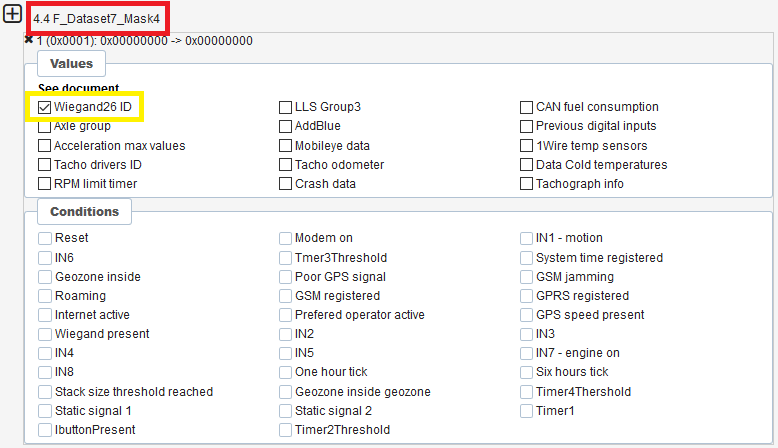

- Firstly, enable Wiegand interface:
- Secondly, enable parameter of ID to be sent to monitoringplatform and Enable reset Wiegand value to reset the card reading value afterunplugging the card:
