Ruptela Trace 5
All Trace5 devices have internal LTE/GSM and GNSS antennas and are equipped with internal backup batteries. In addition to the standard option of the compact IP30 housing, Trace5-LTM and Trace5-LTE-EMEA devices are also available with IP67 rated housing
- Real-time data from GPS and accelerometer
- Remote ignition blocking
- Internal geofences
- Driver behavior monitoring (Eco-Drive)
- Temperature monitoring
- Driver registration and identification
- Impact and rollover detection
- Additional sensors and peripheral

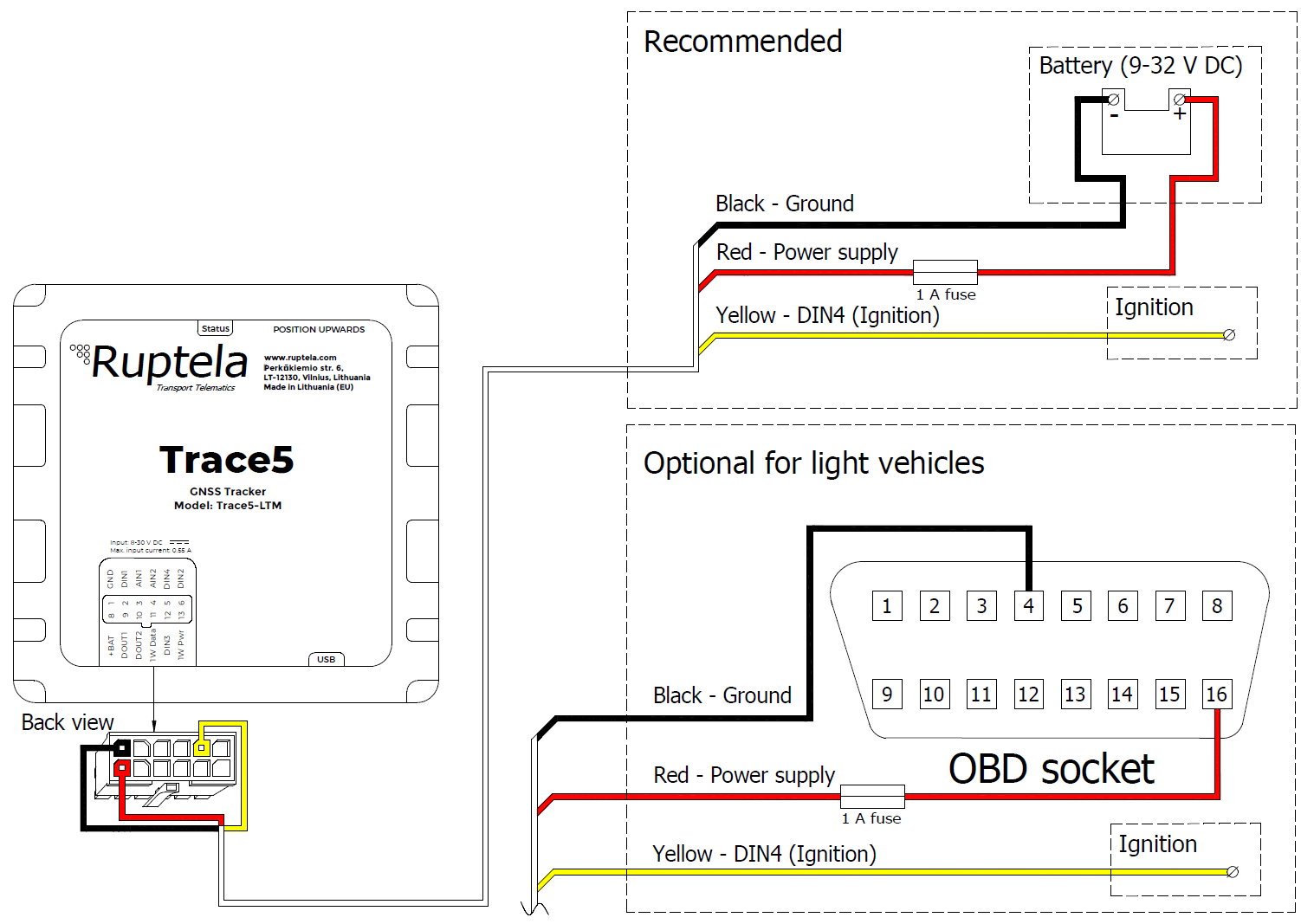

Pinout

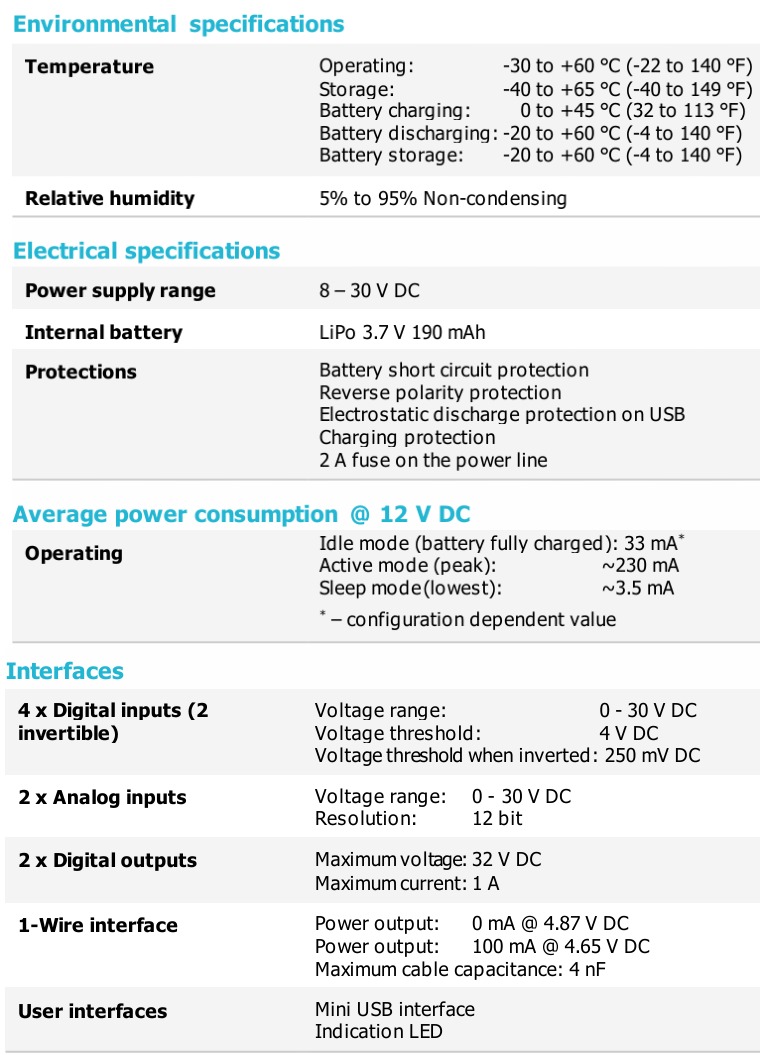

Technical Specification
notes
- Trace5-LTE-EMEA - LTE Cat 1 (4G) connectivity for the EMEA region (with 2G fallback)
- latest firmware version is Trace5_00.06.28.15.efwa5 and we always upload latest firmware version
- Configuration files uploaded by Fota
- The device can be set up and managed via messaging, enabling control over various features and parameters through message-based commands.
- You have the flexibility to modify various parameters and create messages within the advanced mode configuration.
- Most devices have password before the command (aqy@159)
- You can check the I/O status using the following commands: getio
- For every command sent to the device, it responds with a corresponding reply.
- The configurator offers two modes: normal and advanced. We recommend utilizing the advanced mode as it encompasses all available features.
- Normal mode
- Advanced mode
- Digital input modes : In Input Mode settings, the user can choose which configurable input will be use: DIN2/AIN1 or Ground Sense. If Ground Sense is selected, the input will act as an inverse digital Input, where a low voltage level will output 1 using the Ground Sense I/O element, and a high voltage level will output 0.
- Check device led behavior on the following:
- Check advanced configurator on the following link: Advanced Configurator
- Check Normal configurator on the following link: Normal Configurator
compatible sensors
TSH202 VA
Load Sensor
Pressure Sensor
Buzzer
Door Sensor
immobilizer
Panic Button
I-Button
