Lora Sensor
Lora Sensor
- loRa Sensor wireless temperature sensor is a high quality product designed by Tzone Digital Technology Co., Ltd. Well, many shortcomings happened in similar products, with full consideration on tough environment and more.
- LoRa Sensor can collect temp readings with a preset interval and send out via LoRa 433MHz module, then gateway products can translate raw data to temperature and battery voltage information.
- Long range(5km)
- long time use features(Stand by 3years with 15mins interval)
- LoRa Sensor can collect temp readings with preset interval and send out via LoRa 433MHz module
Pinout
- connect the battery of the sensor and turn on the sensor from the button
- mount the sensor on the wall
Technical Specification
notes
- This sensor compatible with lora gateway
- The sensor has working modes:
- Normal mode: LoRa Sensor will collect temp readings and send them out as settings via Lo-Ra 433 MHz module.
- Low voltage mode: Device will send data each 30 mins (Default 30 minutes, adjustable) after enter low voltage mode, voltage lower than2.2V (Default 2.2V, adjustable)
- Temp and humidity alarming mode: Device will send alarming readings in a shorter interval than customers` settings (Default 1min,adjustable), in order to keeping alerts and make an obvious record.
- Functions of Button:
- Access to configuration mode

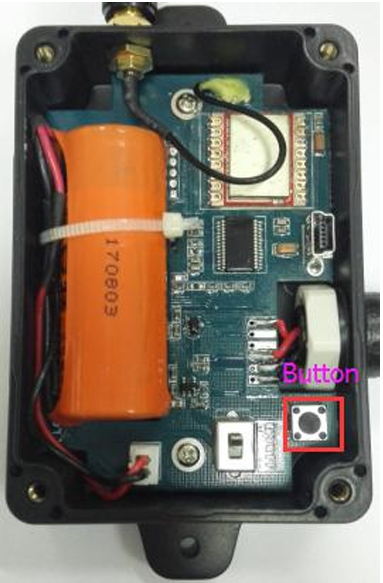

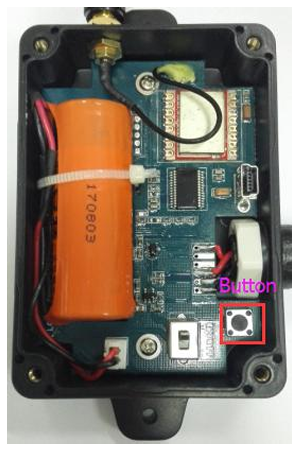

- Step1: Please open the case and you will see a button and a USB interface, and please connect the USB cable with computer for using. Please check the structure of device as picture shown below.
- Step2: Device will start configuration mode by pushing the button for 5seconds, and LED light will keep on. Meanwhile, Device will quit automatically without operation for 30 seconds, and LED light will turn off
- Step3: Please configure it according to command list and be aware that: all configuration will execute unless you send #DS to save all operations
- Send a fresh data by pressing the button for less than 1second
- Send a fresh data by pressing the button for less than 1second
- Access to configuration mode
- LED indications:
- LED light will turn on when LoRa Sensor send a reading out; LED light will turn off by when it finished.
- LED light will keep on in configure mode until configuration ends.
- LED light will on when you push Button quickly, and LoRa Sensor will send out a reading, LED light will turn off when finished.
