Lora Gateway
TZ-RD06 is a RF receiver that allows you to easily and comfortably manage many TZONE RF wireless temperature and humidity sensors, TAG06 or TAG06B at once. Thanks to build in GSM and RF modules the Gateway receives the measurements from all sensors within its range and sends them to your Cloud platform account. TZ-RD06 also has a build in memory that allows it to save up to 10,000 measurements and, incase of temporary connection lost with the platform, the measurements can be uploaded after regaining connectivity. Your data is now safer than ever!
- Backup battery for emergency use
- 100pcs sensors could be recognized at a time
- GSM (850、900、1800、1900MHz)or WIFI connection
- RS485/Modbus-RTU supported
- Transmission distance up to 300 meters in open area

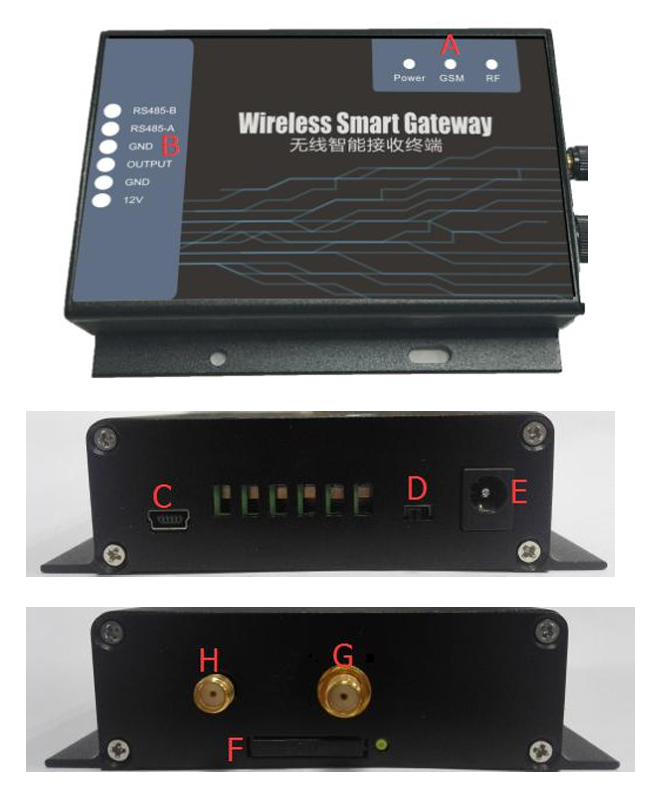

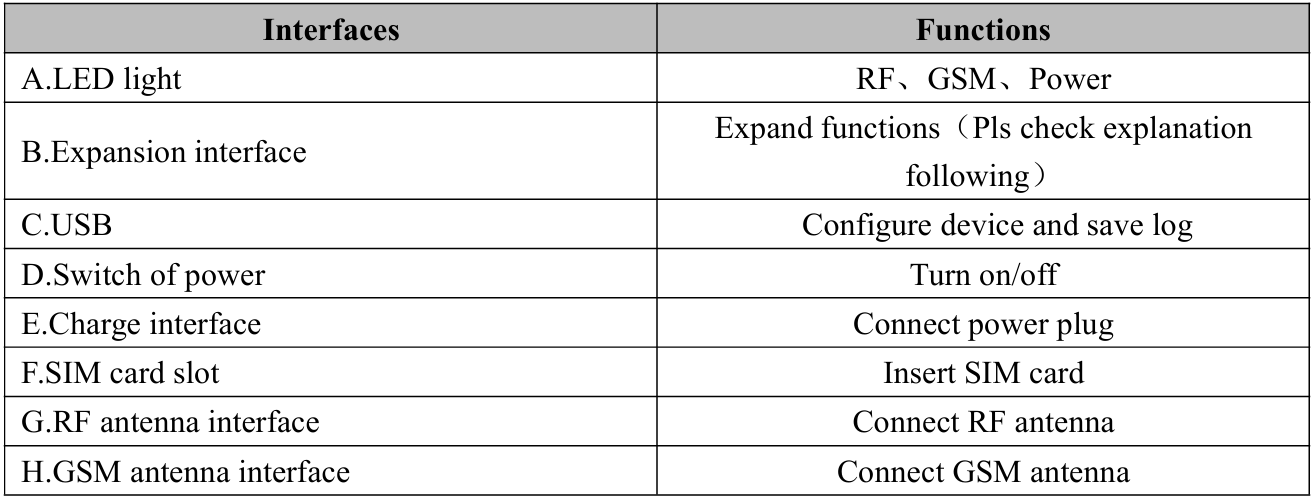

Pinout

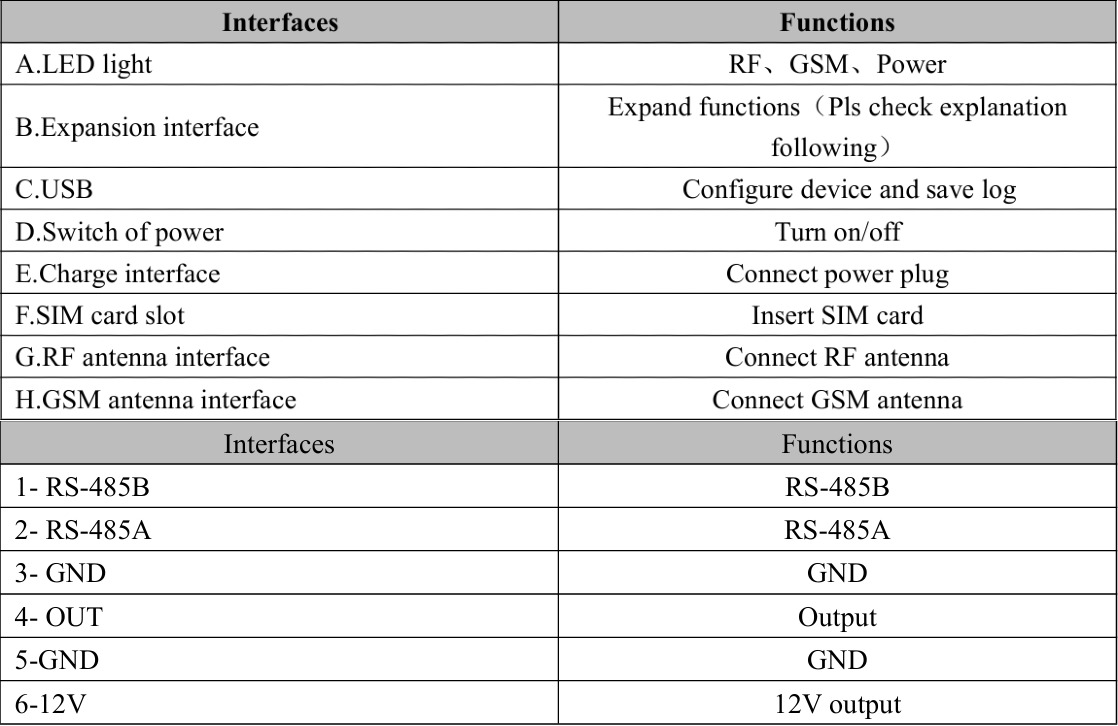

Technical Specification
notes
- The device can be set up and managed via messaging, enabling control over various features and parameters through message-based commands but this feature is available on sim card version and you can check the command list on the reference link
- The gateway must be configured it the office with configurator (offline)
- for GSM version you can send command
- most common commands:
- APN---> *$$$$$$,011,APN,Username,Password# ,Example:*000000,011,afaqy.iot.zainsa,,#
- IP ---->*$$$$$$,015,X,IP,PORT# ,Example:*000000,015,0,212.70.49.110,12052#
- Delete Records---->*000000,991#
- Restart ---->*000000,500#
- After you send the command of SMS to device, it will reply to your mobile phone: Receive:’011’OK
- most common commands:
- you can check the rest of commands on the reference link 1
compatible sensors
Lora Sensor
