TK05
- Maximum 400 days working time
- Police & Detector’s Best Choice
- 5000mAh Lithium-Polymer battery

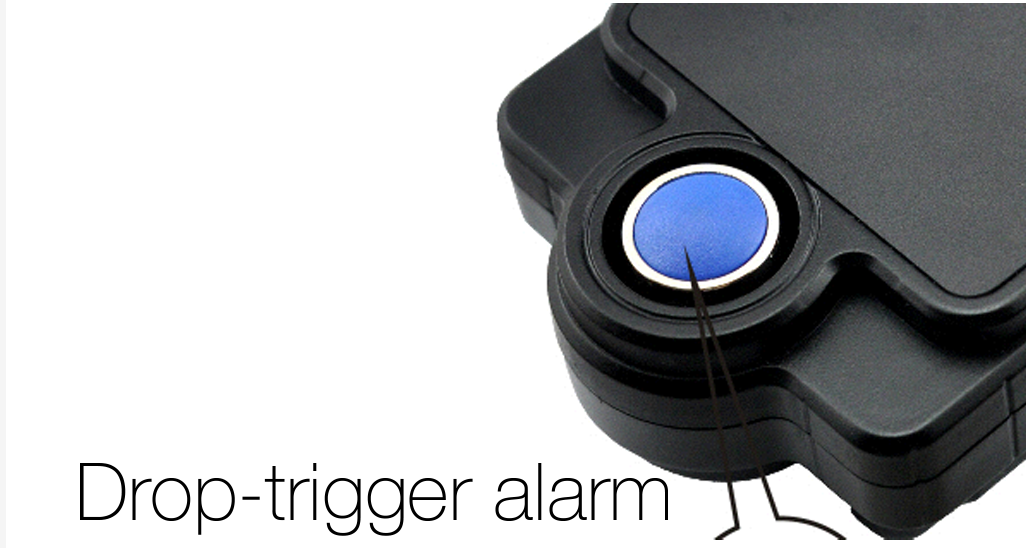

- Drop-trigger alarm build-in
- GSM+GPS positioning with Google map tracking
- Water-Proof design with strong magnets built-in
- Remote Bug Monitoring function with DSP within five metersof effective
Pinout
- Open waterproof rubber
- Insert SIM card into the SIM slot, metal face up, clippedcorner to the right.
- Green light is flashing for couple second and turn to onalways on
- Ensure the waterproof rubber is closed after SIMinstallation
- Mount the device on iron surface.
Technical Specification
notes
- It exclusively relies on GPS signals for tracking, without the need for any sensor connections.
- A drop alert will be automatically activated once tracker is attached on the iron surface, Owner will receive a immediate drop alert by call or SMS once device is fell off the iron surface.
- The device can be set up and managed via messaging, enabling control over various features and parameters through message-based commands.
- For every command sent to the device, it responds with a corresponding reply.
- Button Operation for GPS function:
- On: Press control button 5 times. The green indicating light will be on for 30 seconds. (System default as ON)
- Off: Press control button 10 times. The blue indicating light will flash for 5
- Reset: Press control button 15 times to reset all settings. The blue indicating light will flash for 5 times, and then the green indicating light will be on for 30 seconds.
- Set APN: (VERY IMPORTANT AND MUST BE DONE 1ST) For the device to send data to the server, this command MUST be enabled
- Set IP: (VERY IMPORTANT AND MUST BE DONE 1ST) For the device to send data to the server, this command MUST be enabled
- Real-time Tracking: This function delivers a highly granular tracking record of a specific route. Once motion is detected, very 10second locate records are uploaded every 1 minute to the server during motion, this function is suitable for speed moving object tracking. And it works in motion only.
- Enable by button Press and hold On button at the back of the device for 3 seconds to turn on route track function, LED flashes 5 times indicates route track function is on.
- Enable by By SMS :
- SMS: *route track*1-99* (1-98 represents hours of accumulated data, 99 means always on) Device Response: “Notice: System has entered route track function for *XX* hours.” If you sent 99 the device responds: “Notice: Route track function is set to always on.
- Real-time tracking location data collecting interval. The smaller interval, the higher accuracy, but the higher power consumption. SMS*rsampling*1-999* (1-999 represents seconds of data collecting interval, default as 10 seconds)
- Real-time tracking location data upload interval. The smaller interval, the higher accuracy, but the higher power consumption. SMS*rupload*60-999* (60-999 represents seconds of data uploading interval, default as 60 seconds, minimum rate should not be less than 60)
