Tzone-TZTHT-02

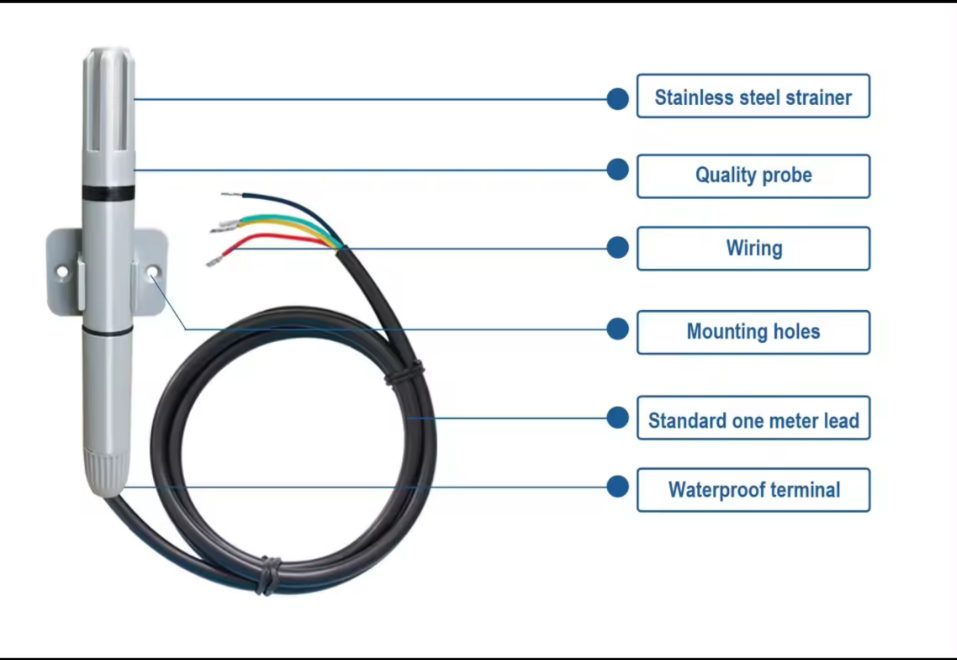

Tzone-TZTHT-02
- temperature and humidity sensor is designed based on the RS-485 communication interface
- Low power consumption
- High precision and good consistency
- Humidity full range temperature compensation

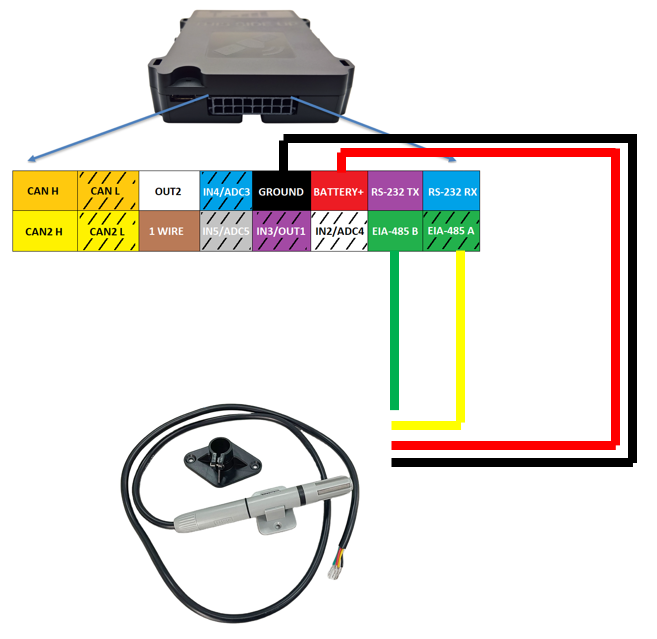

Pinout
- Red -----> Power
- Black -----> Ground
- Yellow -----> RS485 interface A
- Green ----->RS485 interface B

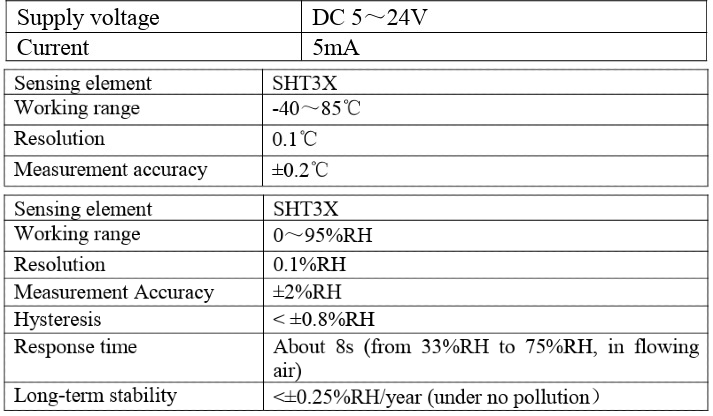

Technical Specification
notes
- It is solely compatible with SDK devices such as (XTCAN).

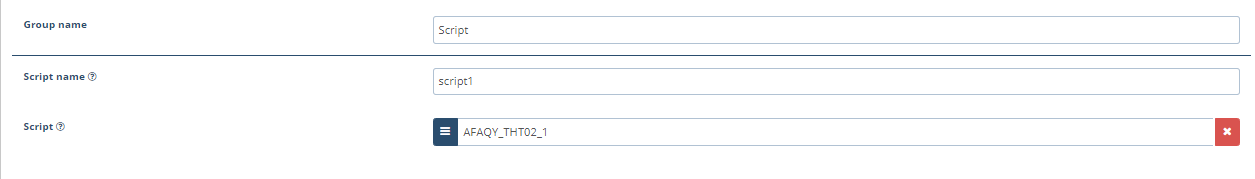

- The script named "AFAQY_THT02_1" must be inserted into the device configuration.

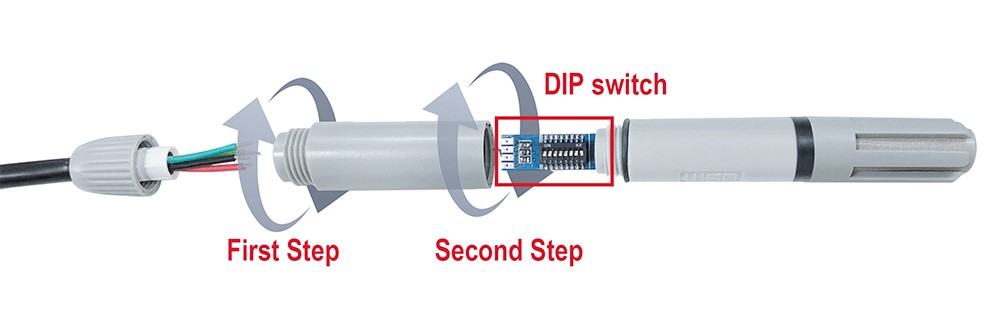

- When installing multiple sensors, it is necessary to consult with the technician to ensure that each sensor has a unique ID using the DIP switch inside the sensor, allowing them all to be properly read.
- If we are connecting 4 sensors, the configuration of the dip switch should be as follows:.
- 1st sensor: only number 8 on and other off
- 2nd sensor: only number 7 on and other off
- 3rd sensor: number 8 and 7 are on and other off
- 4th sensor: only number 6 on and other are off
- then we check the script as follows:

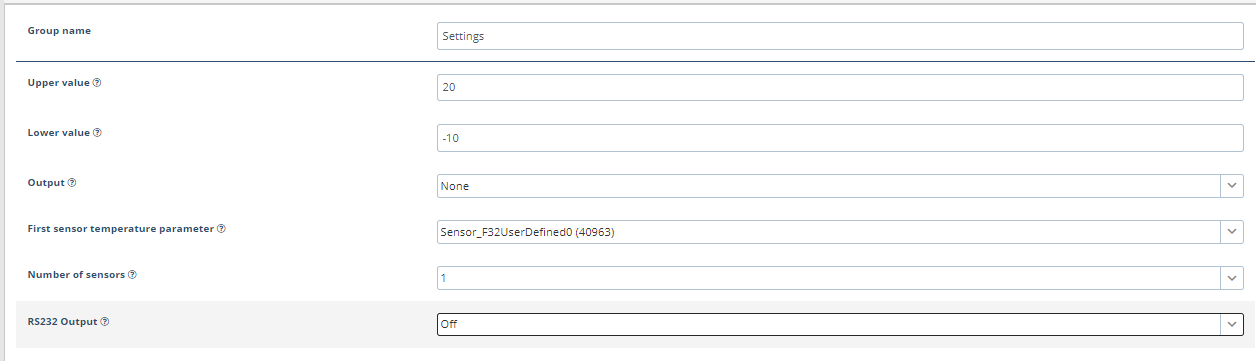

- change the number of sensor on the setting according to the connected sensors.

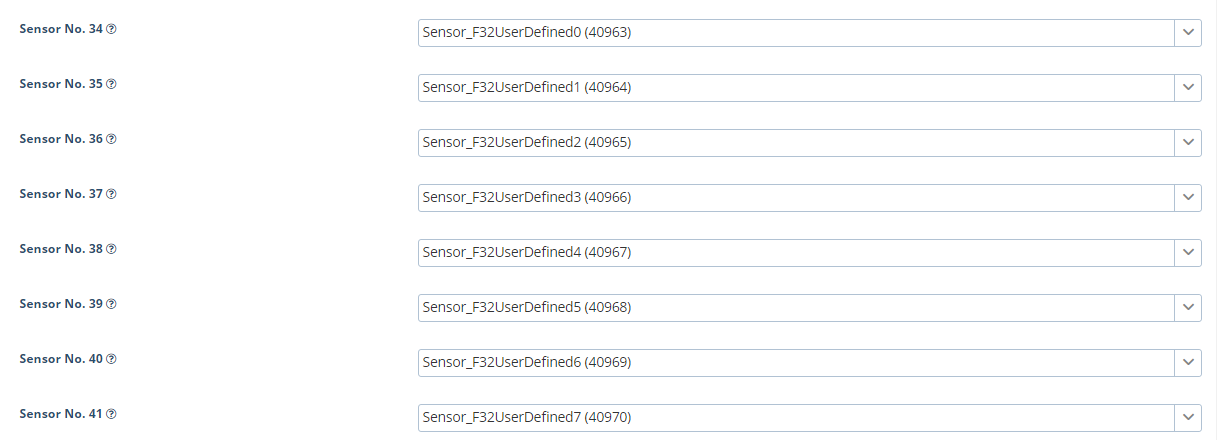

- add sensor parameters on data recording
