TOPFLYtech PioneerX100
The PioneerX100 incorporates GNSS, LTE and Wi-Fi technologies, enabling the precise collection of the device's coordinates and the efficient transfer of this data via the LTE network to the server. This provides customers with cost-effective and secure management. Its rugged and compact IP41-rated enclosure has made it a popular choice in a variety of sectors, including commercial transportation, corporate fleet management, logistics, car rental, heavy machinery, shipping and more.
- Real-time GPS and accelerometer data
- Remote ignition block
- Geofence support
- Driver behavior monitoring
- Connection to numerous BLE sensors
- Multiple inputs and outputs
- Collision detection
Pinout

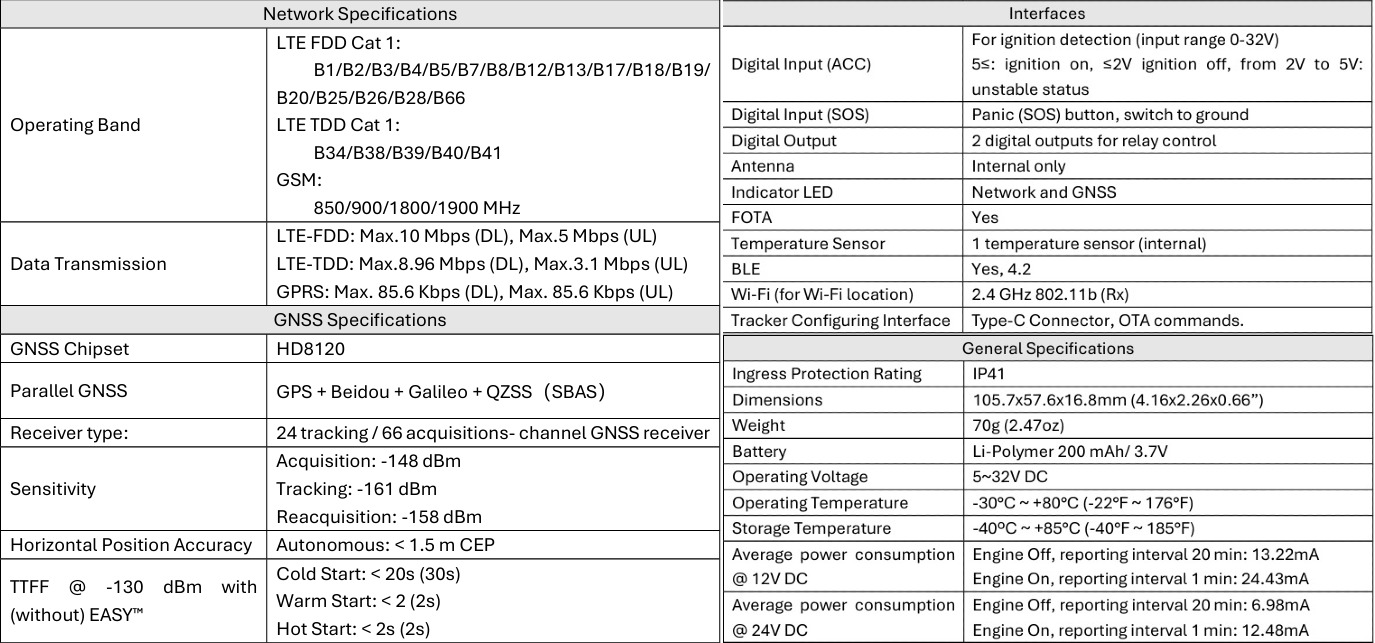

Technical Specification
notes
- TOPFLYTECH PioneerX100 LTE FDD Cat 1 (4g)
- Configuration files upload by FOTA are not activated yet
- The device can be set up and managed via messaging, enabling control over various features and parameters through message-based commands.
- The device is equipped with Bluetooth connectivity, allowing for the connection of Bluetooth sensors and enabling control over them.
- Example: TSTH1-B Temperature & Humidity Sensor
- It has the capability to connect with up to 50 Bluetooth sensors simultaneously.
- You can check configurator and command list from reference link : Command list
compatible sensors
TopFly Temperature and Humidity (TSTH1-B)
TopFly Door and Temperature (TSDT1-B)
Buzzer
immobilizer
Panic Button
Tzone TZ-BT04 bluetooth
