TopFly Door and Temperature (TSDT1-B)
TopFly Door and Temperature (TSDT1-B)
TopFlyTECH’s TSDT1-B compact sensing device is a versatile BLE-based temperature and door sensor designed to be used for a wide range of fleet management, tracking, security and safety functions.
- The sensor uses the latest BLE 5.0 technology
- monitor the door status and the ambient temperature
- a low-cost,high-performance, and secure way of remotely monitoring your environment
Pinout
1. Open the lid of the sensor.
2. Remove the plastic sticker (marked in red).
3. Close the lid.
4. Make sure the rubber seal is not bent. Do not overtight!
Technical Specification
notes
- It is compatible with teltonika and topfly devices only
- We can connect up to 4 sensors to one device
- the configuration have to be edited such as follows:

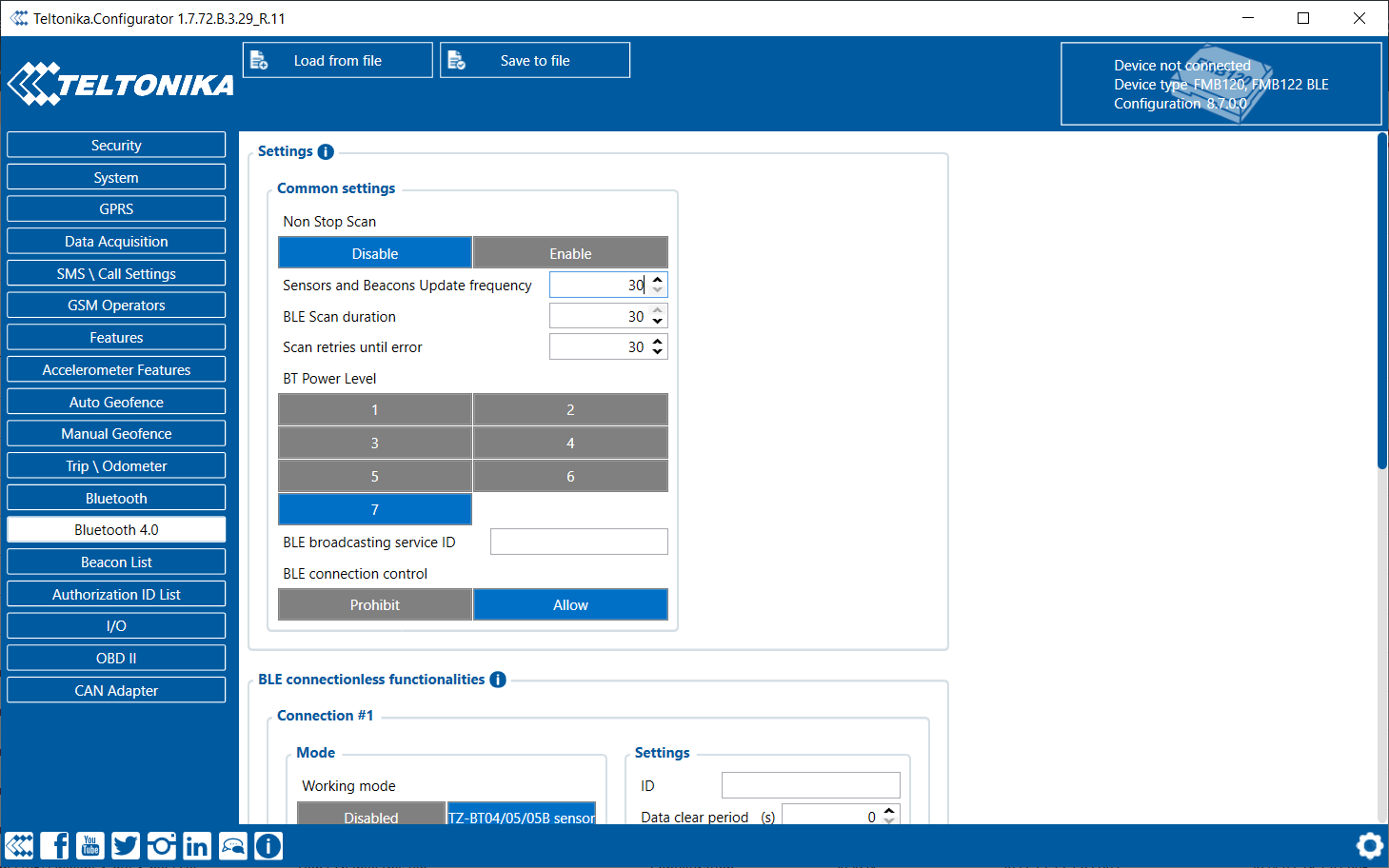

- enable Bluetooth settings
- the configuration have to be edited such as follows:

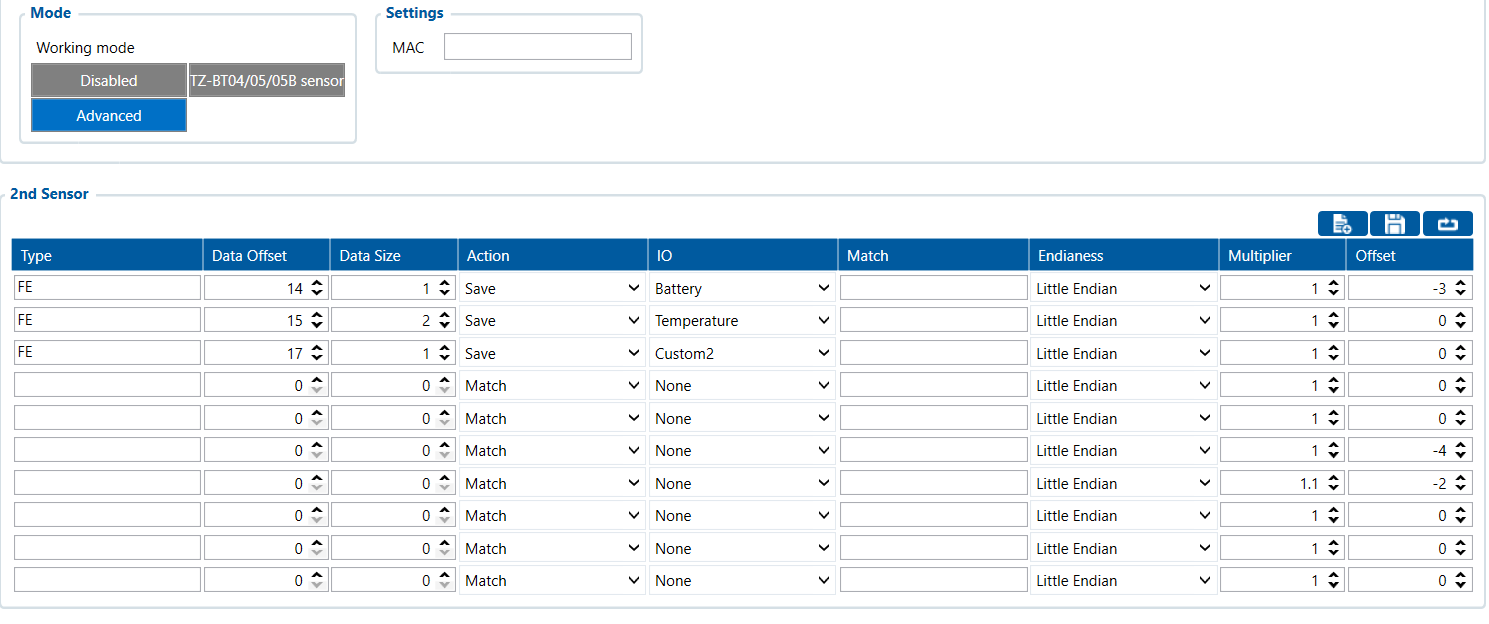

- change connection mode to "advanced" and Load preset as shown in the photo

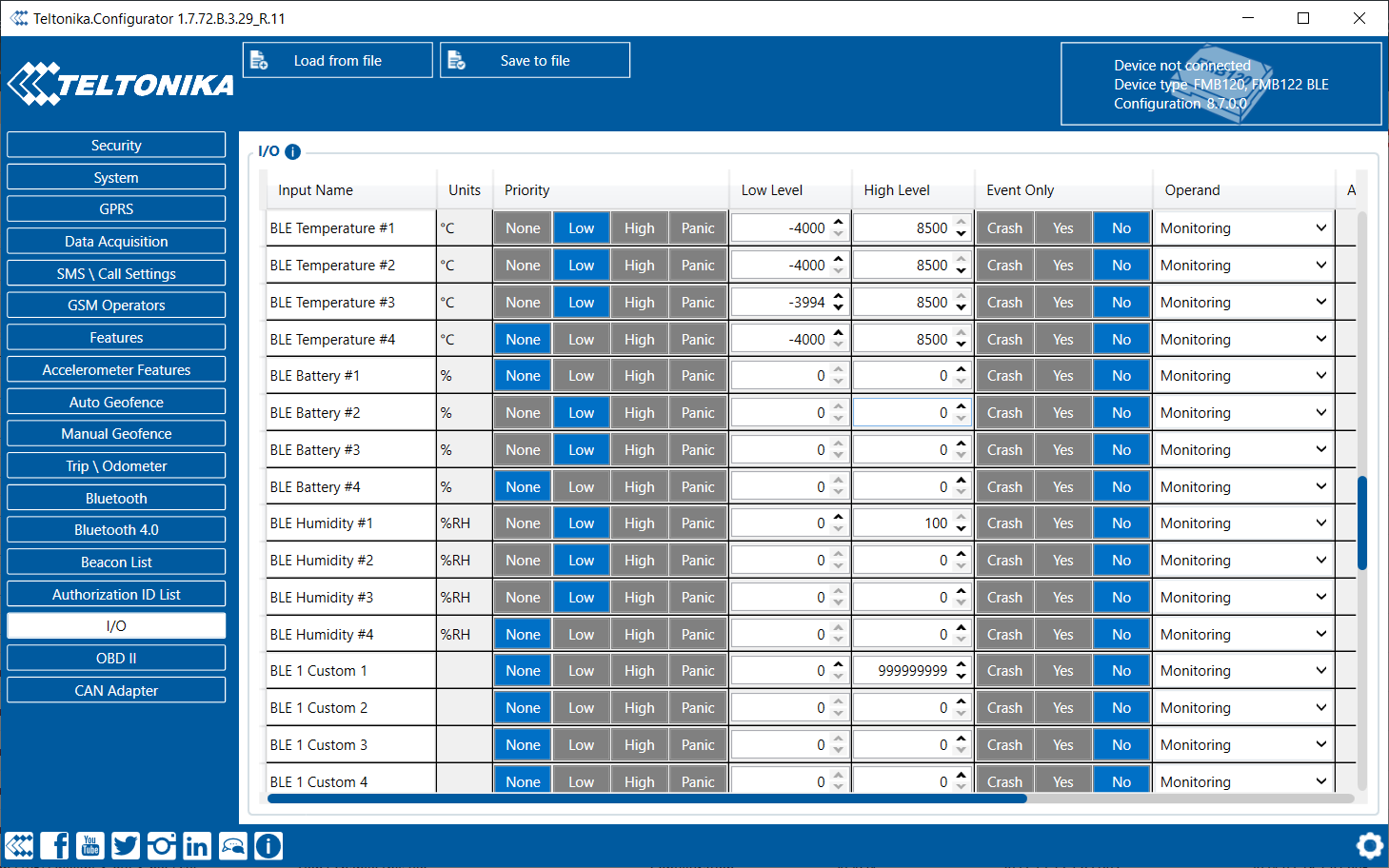

- enable parameters in I/O according to connected sensor
- Send the sensor's mac address to the following parameters tobe uploaded to the configuration and it will depend on the sensor’s quantity
- First mac: setparam 1202:mac
- second mac: setparam 1252:mac
- third mac: setparam 1302:mac
