Galileosky Base Block
Base Block is a compact and multifunctional GPS/GLONASS vehicle tracking device that is suitable for a wide range of tasks in the field of transport monitoring and fleet management. The device not only allows to track the vehicle’s location in real time but also to apply a wide range of features due to the option of connecting up to 16 additional sensors and connecting to the CAN-bus of the vehicle.

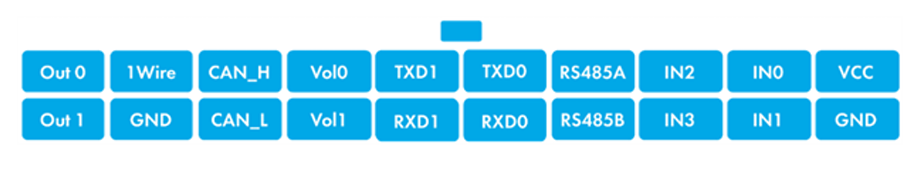

Pinout

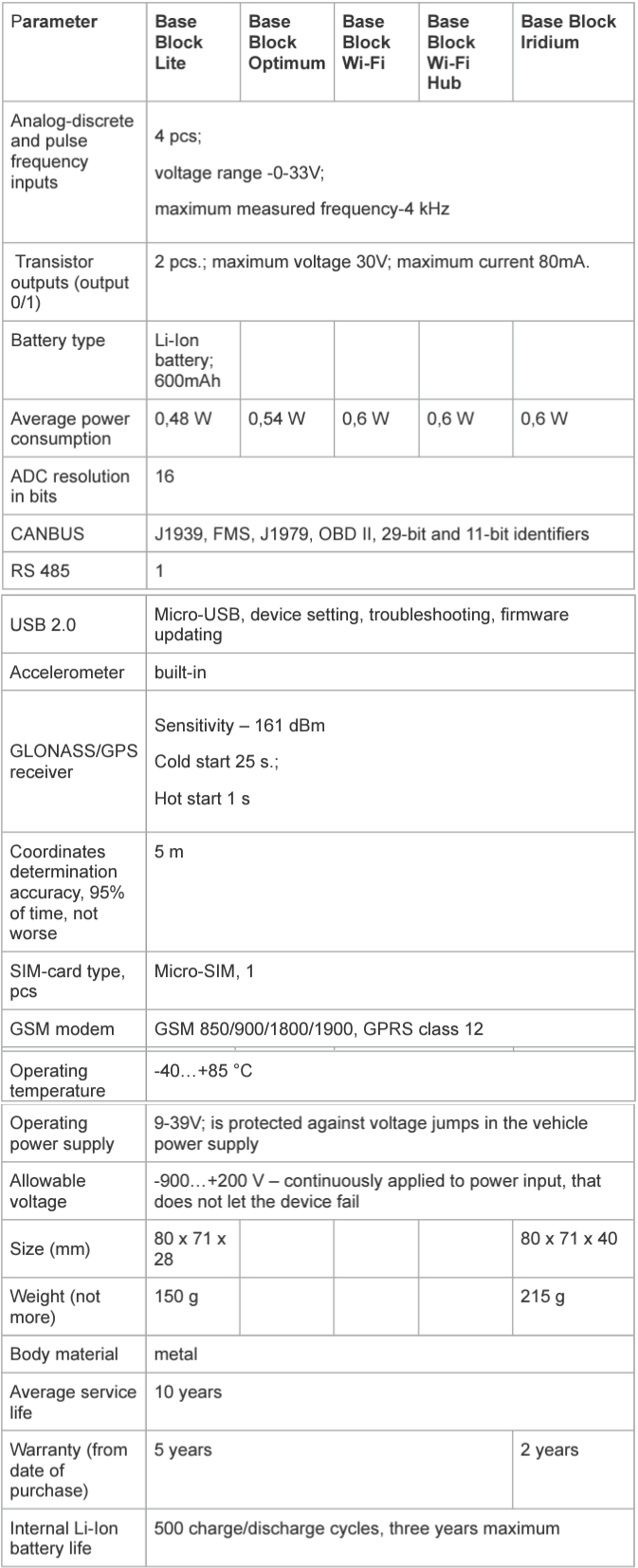

Technical Specification
notes
- The only get updates through the satellite, even if there is no network connection.
- You can update the configuration online using the configurator and also access real-time device readings through it.
- It canoperate effectively even under harsh conditions thanks to its durablematerials.

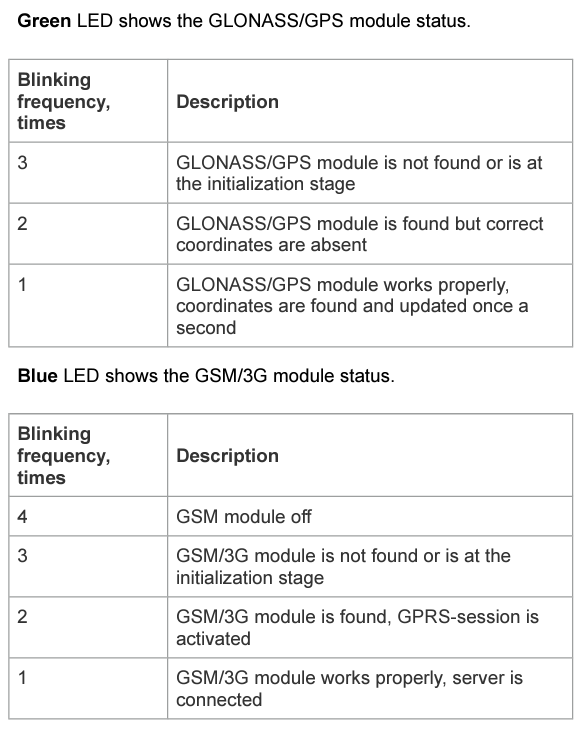

- Led light indication:
- Check configurator setting : Configurator

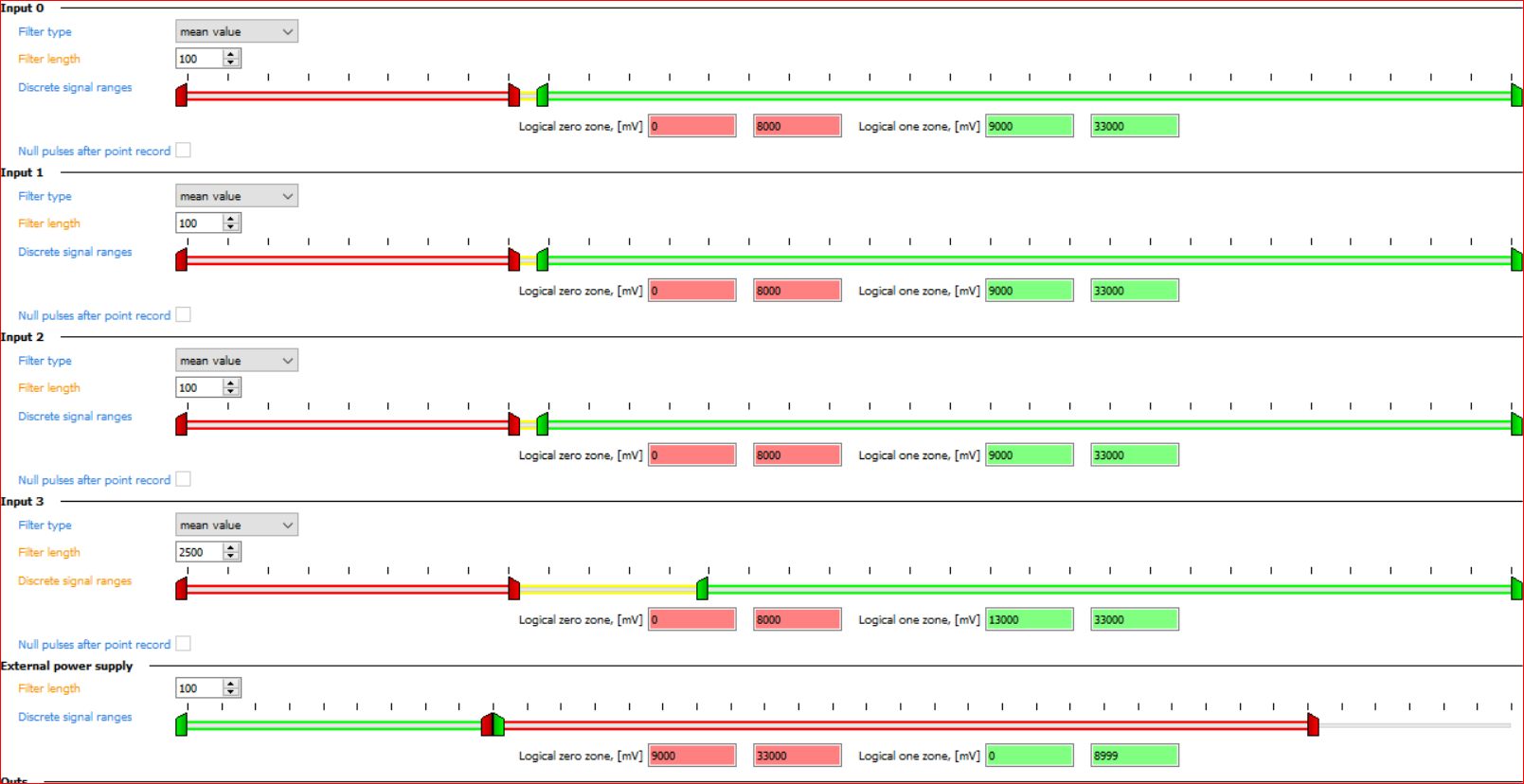

- We have established a logical zero zone defined by two values for the analog voltage input. When the voltage falls within this range ,the digital input of the port will be set to zero. Similarly, we have defined two values for the logical one zone, where the digital input of the port will be set to one when the analog voltage is within this range.
compatible sensors
Load Sensor
Pressure Sensor
Buzzer
Door Sensor
immobilizer
Panic Button
I-Button
