TopFly Temperature and Humidity (TSTH1-B)
TopFly Temperature and Humidity (TSTH1-B)
TopFlyTECH’s TSTH1-B compact sensing device is a versatile BLE-based temperature and humidity sensor designed to be used for a wide range of fleet management, tracking, security, and safety functions.
- Its rugged and compact IP64-rated enclosure
- BLE 5.0 to listening devices
- collecting the ambient temperature humidity and light
Pinout
1. Open the lid of the sensor.
2. Remove the plastic belt under the battery.
3. Make sure the rubber ring in its correct position andclose lid tightly.
4. Remove the sticker on the lid.
Technical Specification
notes
- It is compatible with teltonika and topfly devices only
- Light Sensor: The TSTH1-B has a light sensor that can detect the amount of light in the environment to help detect a door status. If the light intensity is more than 1 lux, which means the light is bright enough to see, the device will report that the door is open or “bright.”. If the light intensity is less than 1 lux, which means the light is very dim or dark, the device will report that the door is closed or “Dark”. This way, the device can help monitor the status of the door in the container its installed in.
- We can connect up to 4 sensors to one device
- the configuration have to be edited such as follows:
- enable Bluetooth settings
- the configuration have to be edited such as follows:

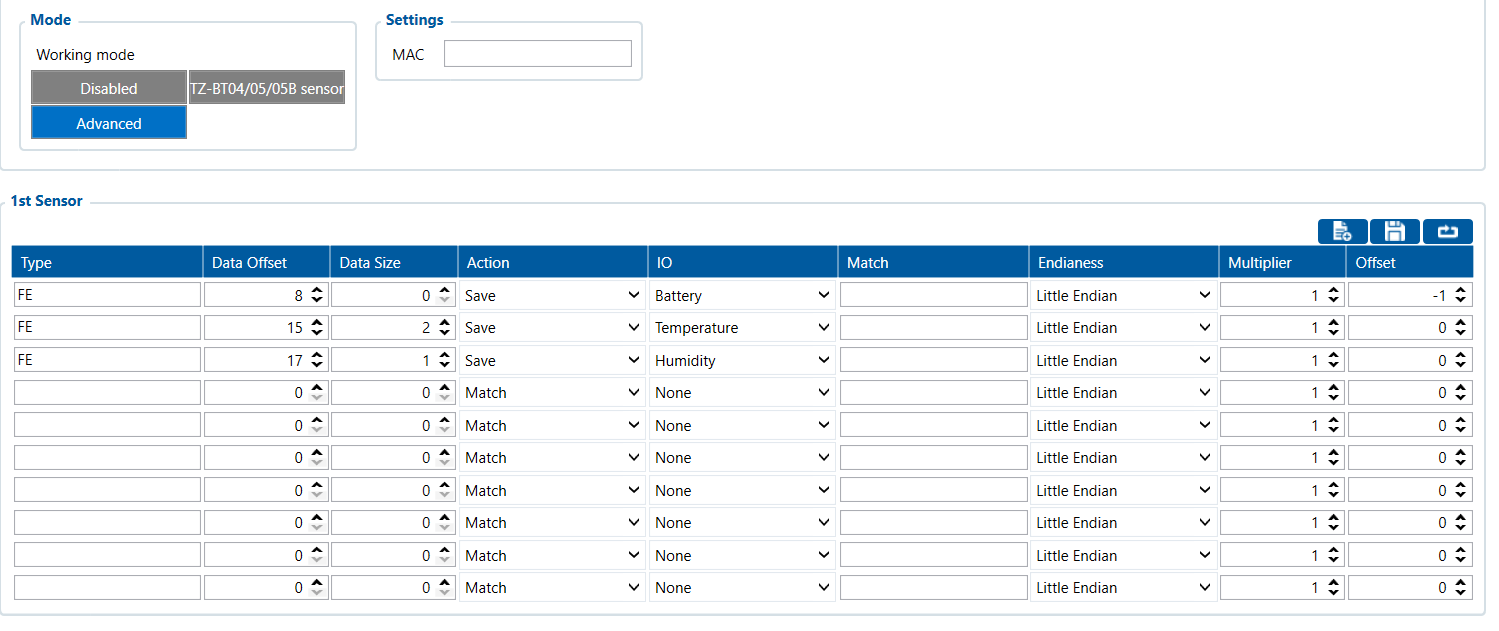

- change connection mode to "advanced" and Load preset as shown in the photo
- enable parameters in I/O according to connected sensor
- Send the sensor's mac address to the following parameters to be uploaded to the configuration and it will depend on the sensor’s quantity
- First mac: setparam 1202:mac
- second mac: setparam 1252:mac
- third mac: setparam 1302:mac
