Teltonika FMC920
- Fast position fix (Outdoor areas);
- High Quality track even in high density urban canyon;
- Ready for harsh environment;
- Firmly fasten;
- Real time tracking;
- Ignition or any other I/O event;
- Sending acquired data via GPRS;
- GPRS and SMS I/O events;
- Virtual odometer;
- Jamming detection;
- Configurable using Secured SMS Commands;

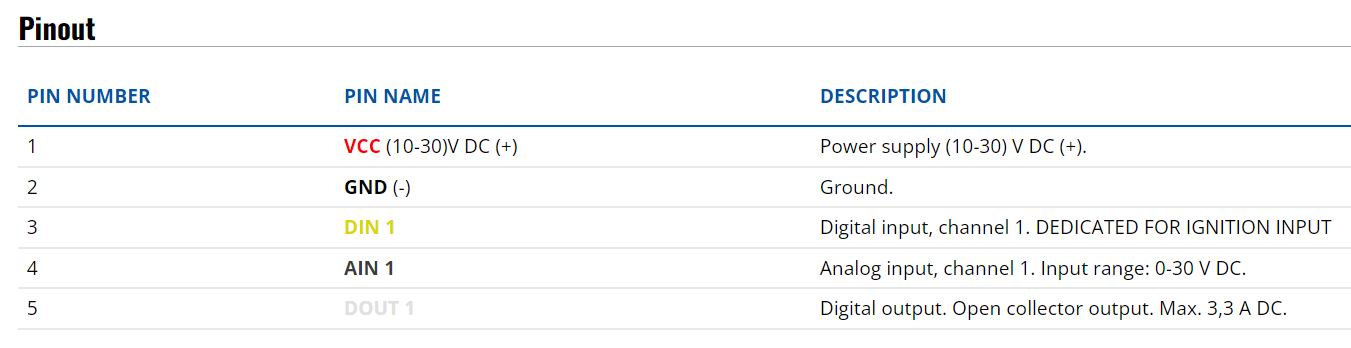

Pinout

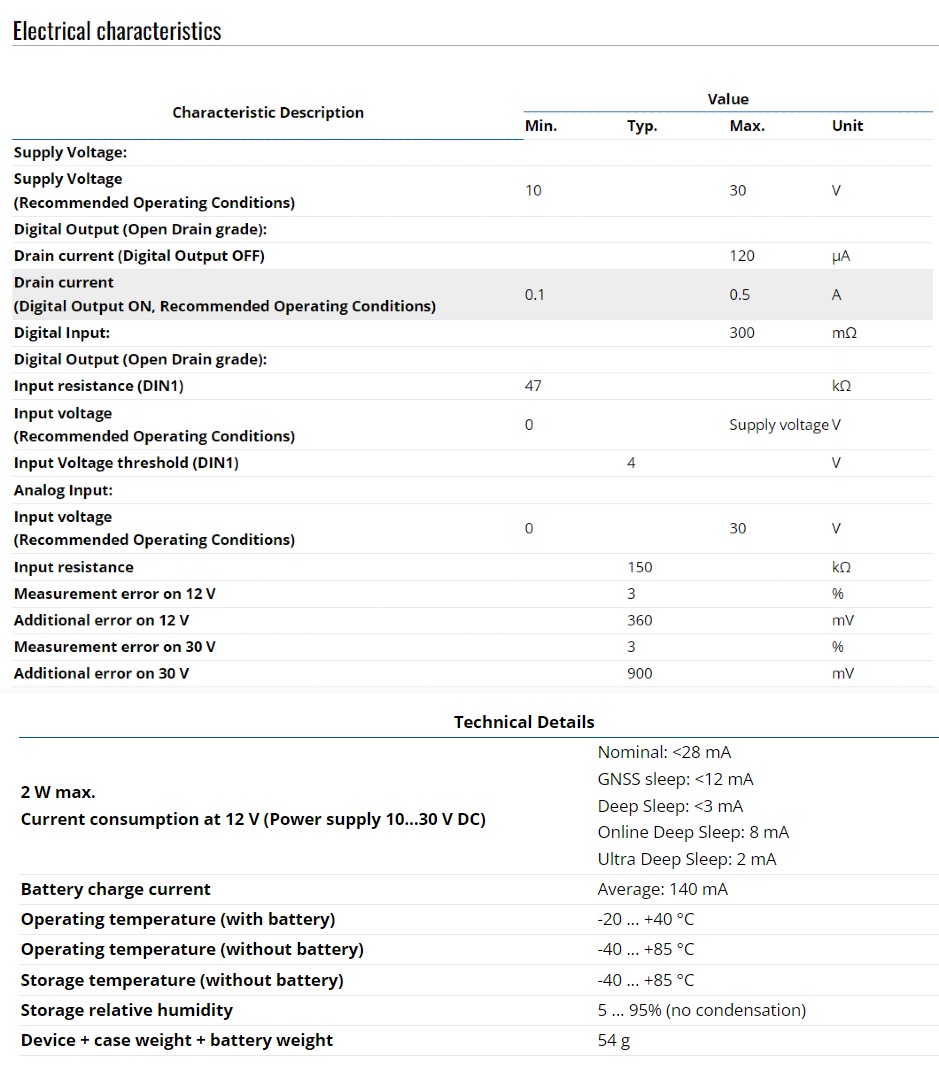

Technical Specification
notes
- Teltonika C920 LTE (CaT1)/2G (GSM/GPRS)/GNSS/BLUETOOTH (4G connection)
- The most basic model among Teltonika devices
- latest firmware version is 03.29.00.Rev.13, and we always upload latest firmware version
- Configuration files uploaded by Fota
- The device can be set up and managed via messaging, enabling control over various features and parameters through message-based commands.
- The device is equipped with Bluetooth connectivity, allowing for the connection of Bluetooth sensors and enabling control over them.
- Example: Bluetooth tzone
- You can check the I/O status using the following commands: getio
- Can check battery status through commands: battery
- For every command sent to the device, it responds with a corresponding reply.
- Check configurator on the following link: Configurator
- Check device led behavior on the following link: LED Behavior
- Reference configuration: FMC920-m2m-(110) ( weight & out& ble )
compatible sensors
Tzone TZ-BT04 bluetooth
TopFly Door and Temperature (TSDT1-B)
TopFly Temperature and Humidity (TSTH1-B)
TSH202 (TER3)
Load Sensor
Pressure Sensor
Buzzer
immobilizer
