Buzzer
Buzzer
Buzzer is used to notify driver about some special events:authentication requirement, overspeeding, harsh driving and other.

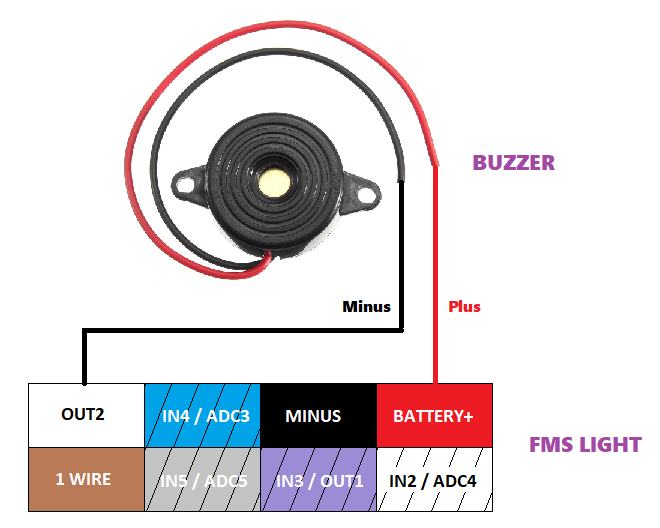

Pinout
- Red ----->Power
- Black -----> AnyDigital Output
notes
- Compatible with any device with Digital Output
- It doesn’t need any special requirements on the configuration; it only unlocks the Digital Output parameter
- Example: (Bce: Out 2)
- Sanrio: The buzzer will sound once the vehicle speed exceeds a pre determined threshold.

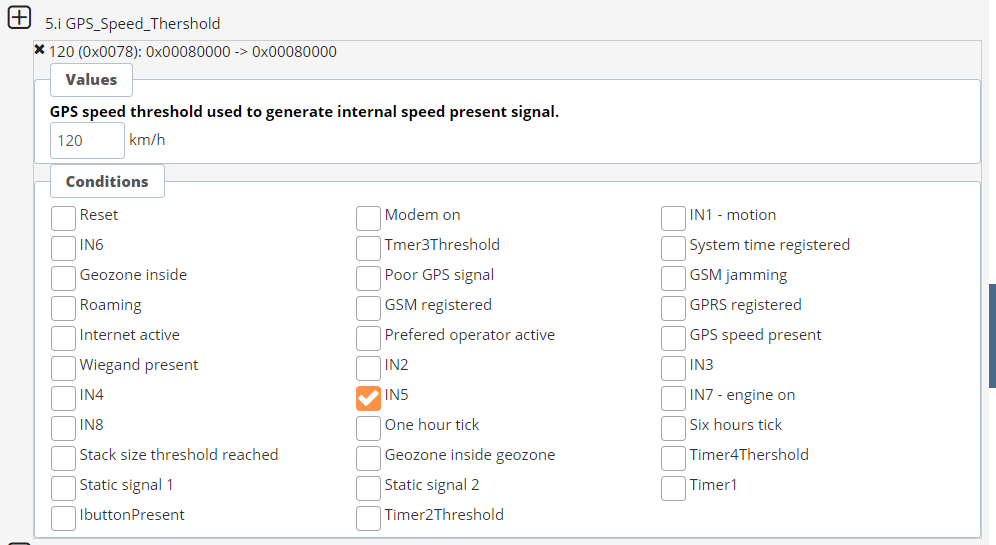

- adjust speed threshold

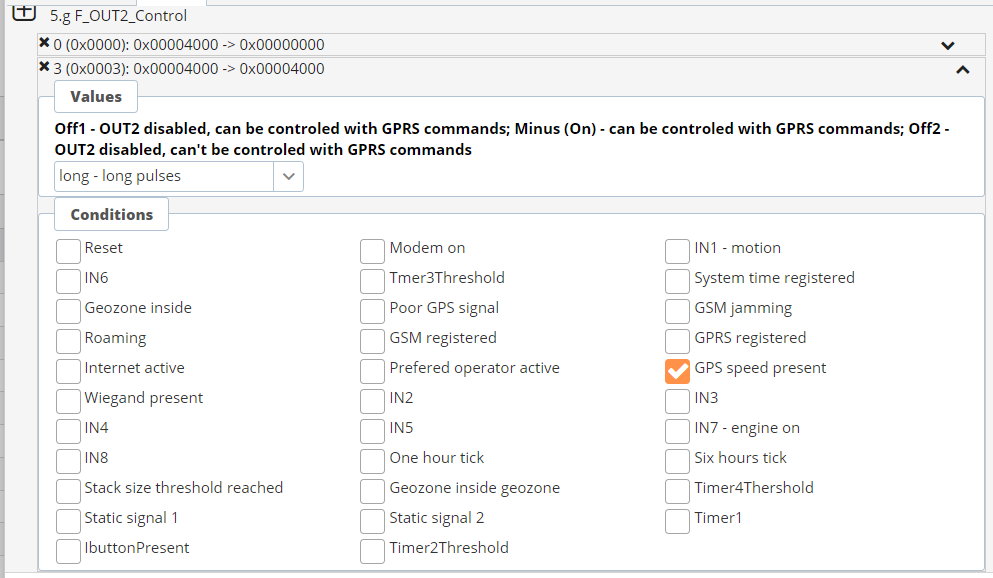

- Then configure Output to On and Off based on GPS speed present.
- To make Out status visible in Monitoring platform, configure device to send instant message on Output state change:
