Teltonika FMB120
- Fast position fix (Outdoor areas);
- High Quality track even in high density urban canyon;
- Ready for harsh environment;
- Firmly fasten;
- Real time tracking;
- Ignition or any other I/O event;
- Sending acquired data via GPRS;
- GPRS and SMS I/O events;
- Virtual odometer;
- Jamming detection;
- Configurable using Secured SMS Commands;

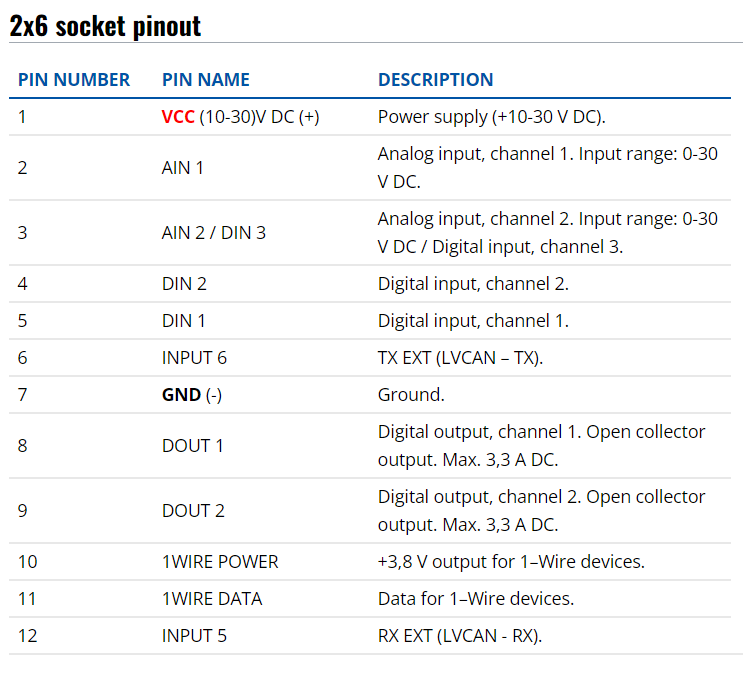

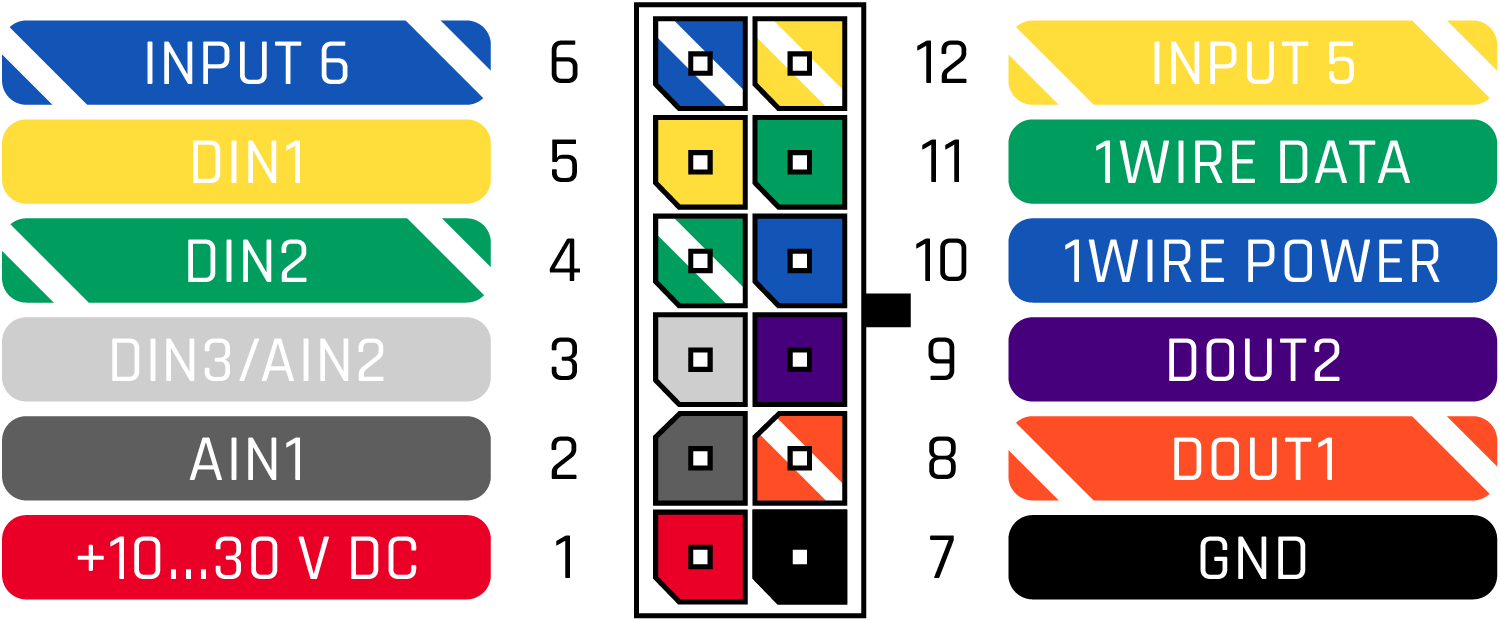

Pinout

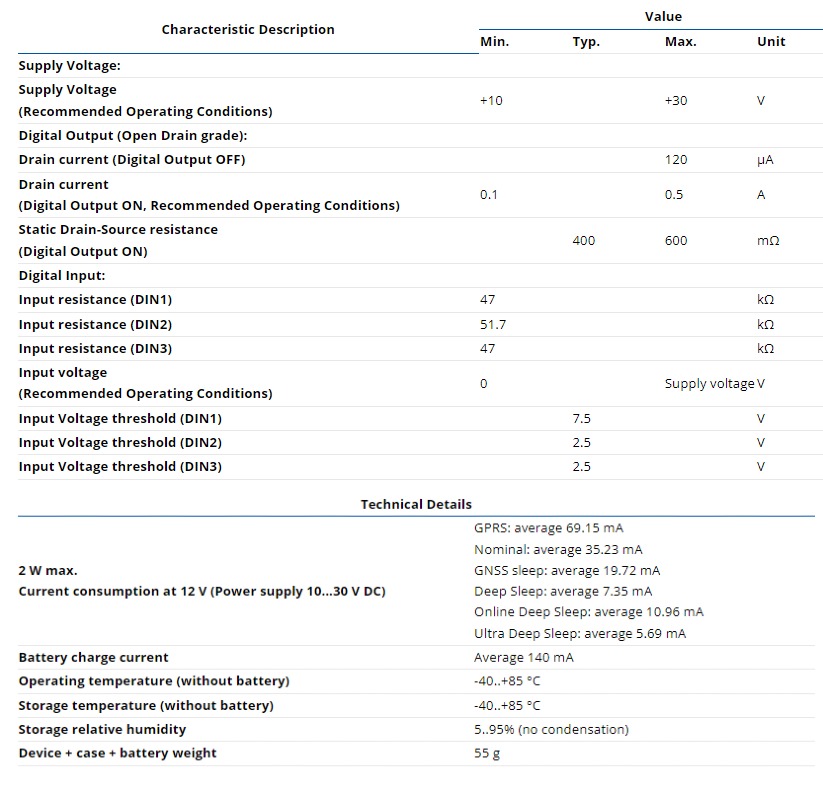

Technical Specification
notes
- Teltonika b120 quad band module (GSM 850 / 900 / 1800 / 1900 MHz) (2g connection)
- Latest firmware version is 03.27.14.Rev.00and we always upload lates firmware version
- Configuration files upload by fota
- The device can be set up and managed via messaging, enablingcontrol over various features and parameters through message-based commands.
- The device is equipped with Bluetooth connectivity, allowingfor the connection of Bluetooth sensors and enabling control over them.
- Example: Bluetooth tzone
- You can check the I/O status using the following commands:getio
- Can check battery status through commands: battery
- For every command sent to the device, it responds with acorresponding reply.

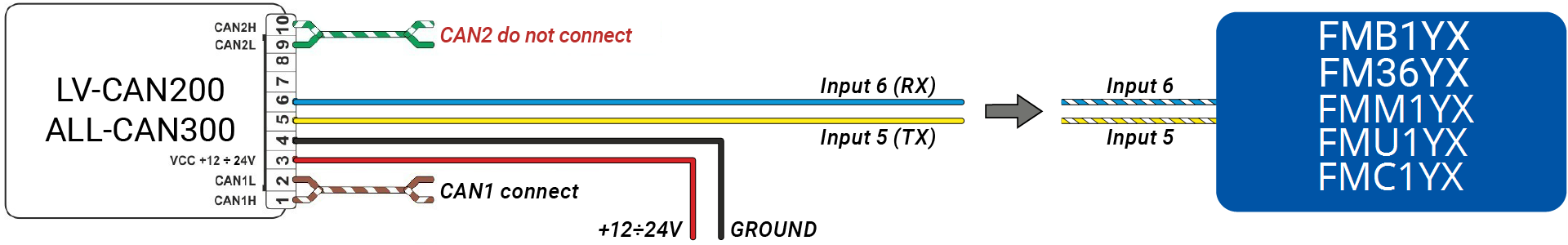

- You can connect a LVcan200 (LowVoltage CAN) interface to the device to enable it to read CANbus messages fromthe vehicle. This setup allows for communication between the device and thevehicle's CANbus system, facilitating data retrieval and controlfunctionalities.
- To enable Ter3 to read, we need to upload the following:
- Use Firmware 344893_FMB.Ver.03.27.13.Rev.482 (B120)
- Use Teltonika.Configurator_1.7.30_E.THS202_R.5

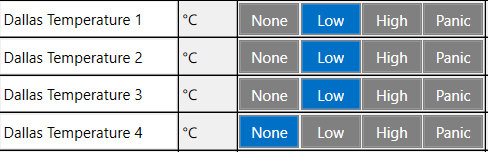

- enable the parameters
- Check out the following link: TeraCom
- Check configurator on the following link: Configurator
- Check device led behavior on the following link: LED Behavior
- Reference configuration: b120-m2m-(110) ( weight & out& ble )
compatible sensors

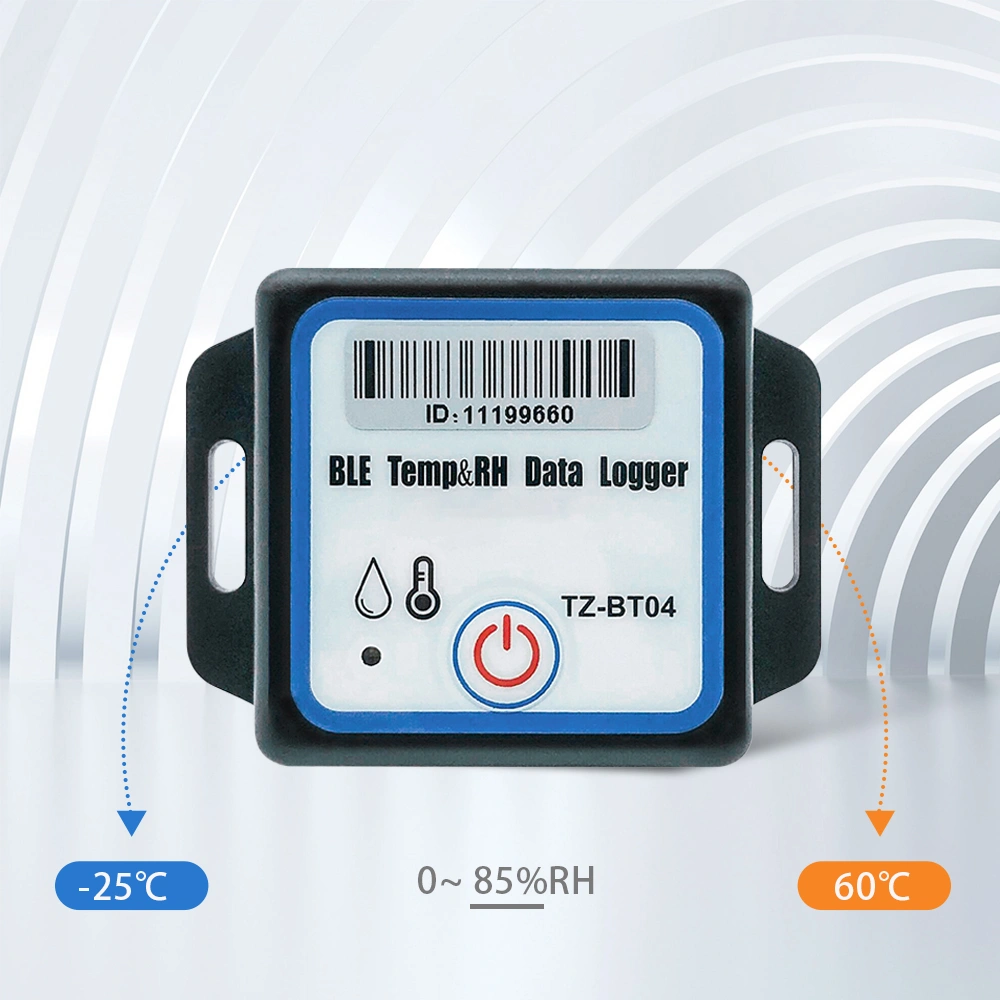

Tzone TZ-BT04 bluetooth
TopFly Temperature and Humidity (TSTH1-B)
TopFly Door and Temperature (TSDT1-B)

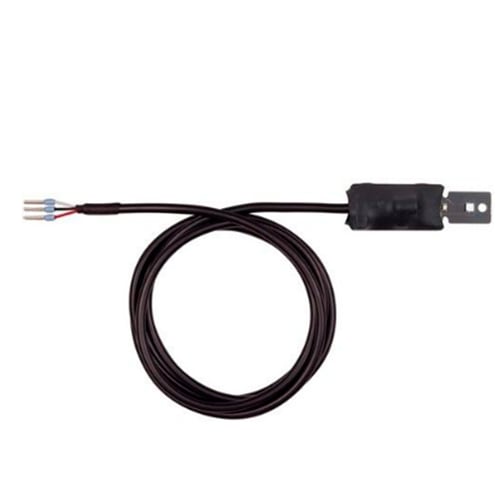

TSH202 (TER3)
Load Sensor
Pressure Sensor
Buzzer
Door Sensor

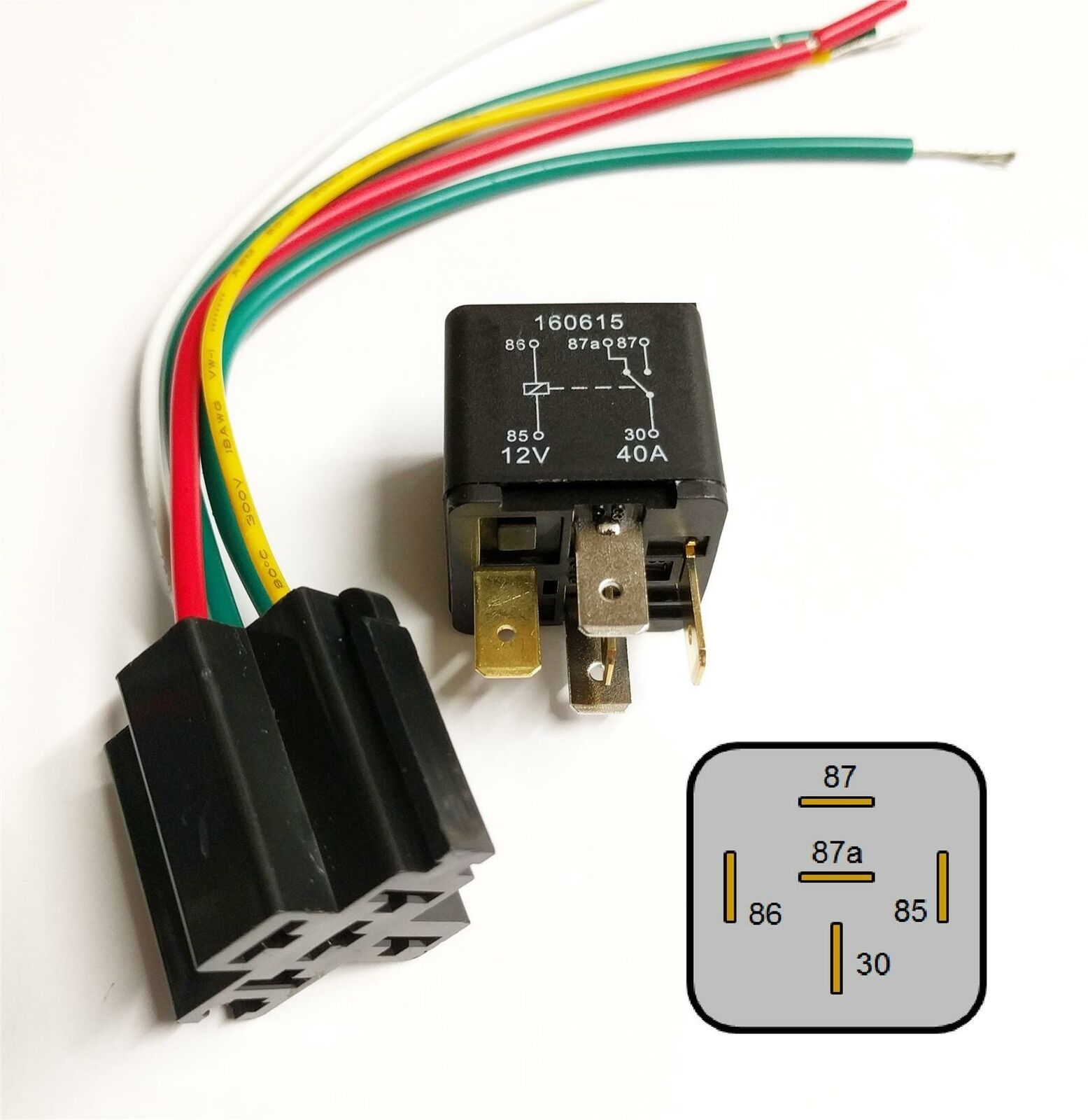

immobilizer
Panic Button
I-Button
LV-CAN 200
