I-Button
I-Button
- Identification Button (i-Button), previously known as Touch Memory, is a miniature chip-based read/write electronic label packaged into a small button-shaped stainless-steel container.
- It can be used as a driver ID

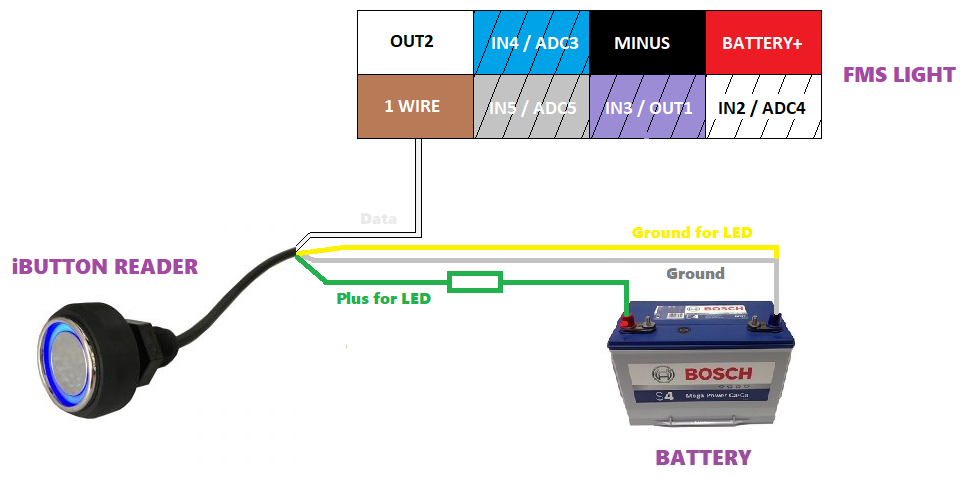

Pinout
- white -----> 1-Wire
- Gray -----> Ground
- Green ----->Power (For Led Indication)
- Yellow -----> Ground (For Led Indication)
notes
- Compatible with any device with I-wire port
- Configuration example (BCE):
- Firstly, enable parameter of ID to be sent to the monitoring platform:
- Then enable feeding of 1Wire interface:
- Enable reset I button value to reset the button value afterunplugging the button
