Asong

all sensors
Asong
device-img
  • a temperature and humidity composite sensor which is humidity Capacitive Digital Temperature and Humidity Module and a calibrated digital signal output.
  • it is old and now it is replaced by Ter3 Sensor

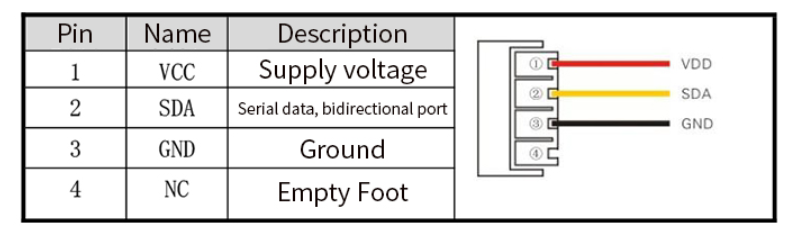

Pinout
device-img
screenshot-1
  • Red          -------  power
  • Black      -------- Ground
  • Yellow     -------  1-Wire

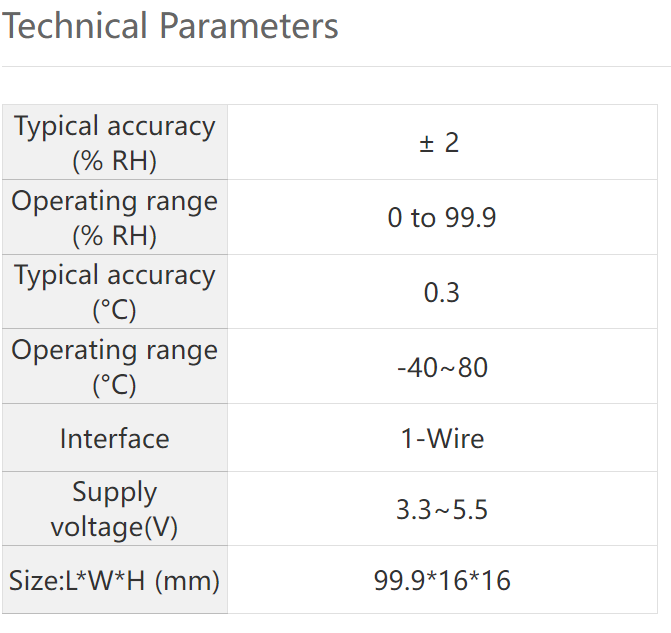

Specification
screenshot-1
notes
  • 1-Wire Temperature and humidity sensor
  • Old sensor and it is recommended to change it because it is EOL
  • combatable with BCE devices except (one) Only and work with all firmware

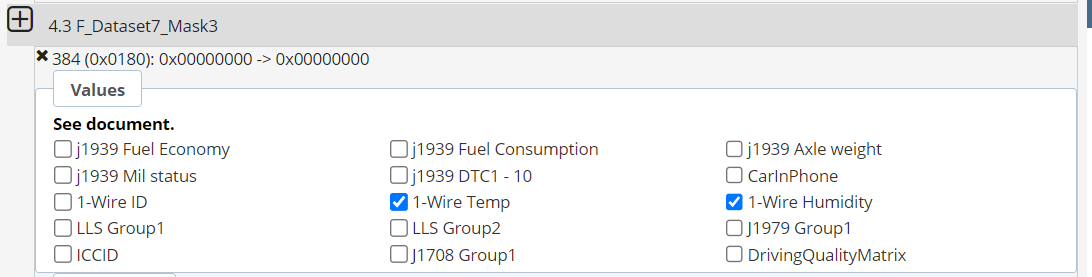

  • configuration Parameters :
