immobilizer
immobilizer
Relay is used to immobilize vehicles, block engine or limit access tothe driving.

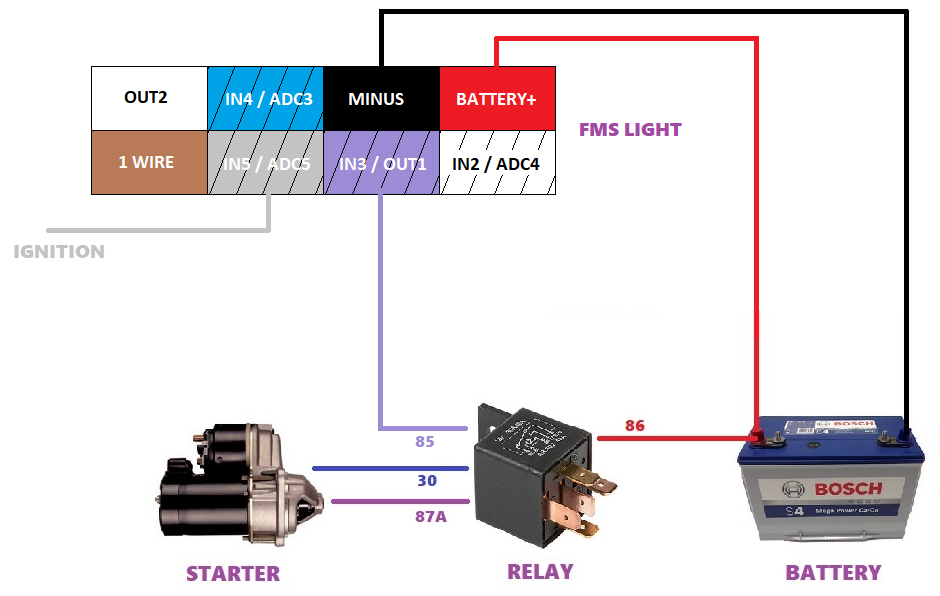

Pinout
- Every pin of relay is numbered, you can find marks on the body of the relay.
- Pins 85 and 86 are controlling circuit. Connect 85th pin of Relay to Output of device (for example, OUT1), 68th pin - to constant positive power.
- 30 and 87A is circuit, cutting vehicle's system. It is recommended to cut starter's feeding wire, as it is safe method to immobilize a vehicle. To 30 and 87A connect both ends of wire you cut.
notes
- there are 2 models 12V and 24V depend on vehicle battery
- Compatible with any device with Digital Output
- It is forbidden to block ignition or the fuel pump, because it is extremely dangerous. It is possible to accidentally block a moving vehicle. So we recommend to block starter. Otherwise need to use speed limit in the configuration to make immobilization safe.
- Configuration example (BCE) :

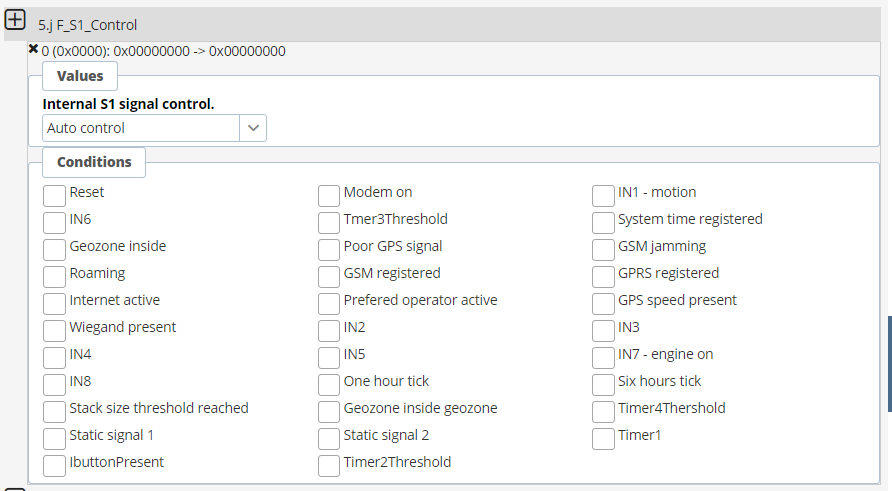

- Permit control of Static Signal 1 using external commands:

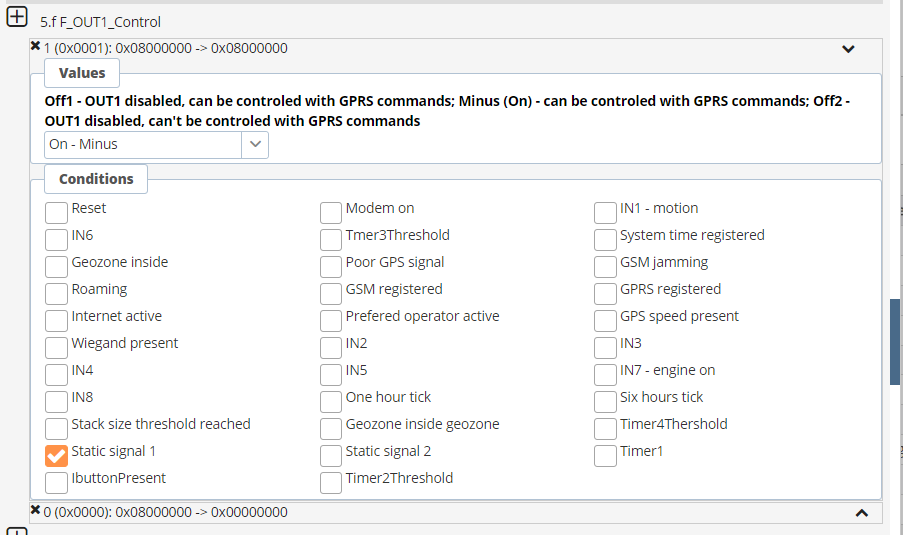

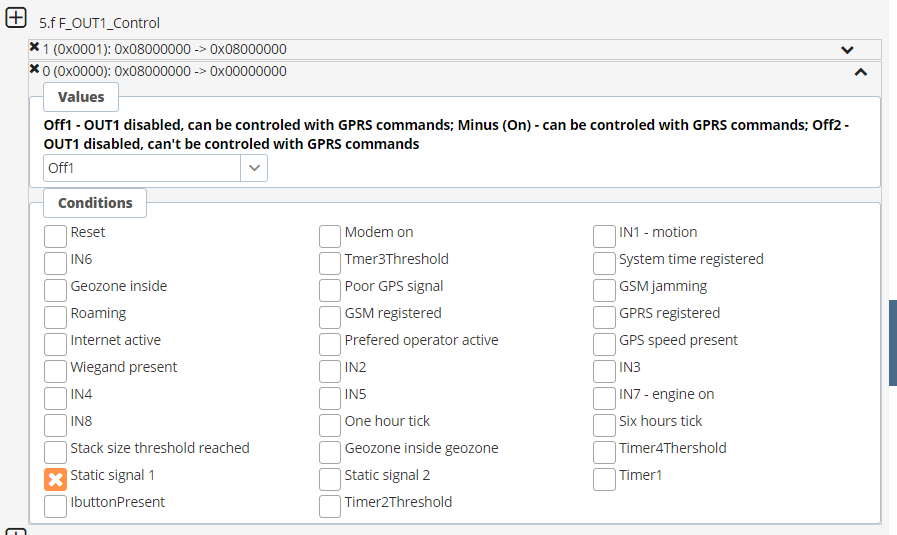

- Then configure Output to On and Off based on Static Signal 1presence
- To make blockage instantly visible in the monitoring platform, configure device to send instant message on Output state change:
- In this scenario, the immobilizer can be connected to an "I button," and the process can be detailed on the reference link 2.

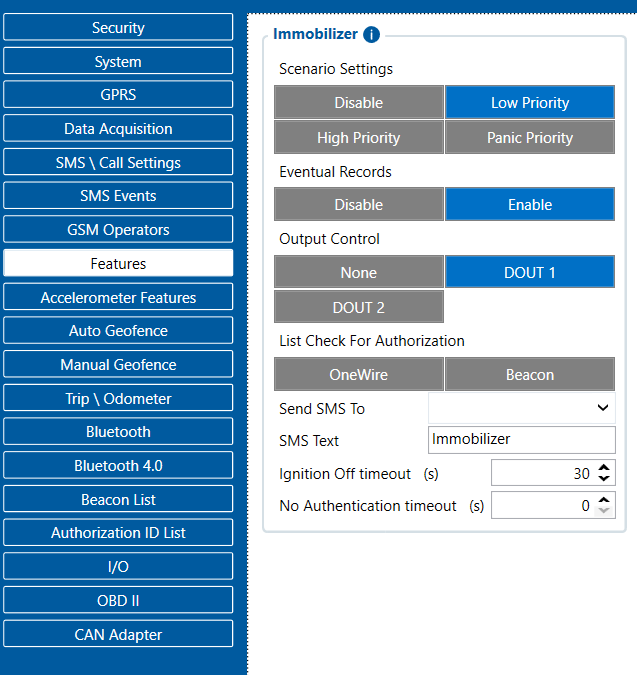

- And can enable the feature on the configuration
