Huato
Huato
HE500 series temperature and humidity transmitter adopts imported 2-in-1 sensor, and the output it provides includes voltage, current, Modbus .etc. With built-in high performance, low-power SCM, it provides wide range and high precision measurements
• Accuracy: Temperature/±0.5℃; Humidity/±5%RH.
• Supporting multiple standard signal output: 4-20mA/0-5V/0-10V/Modbus /RS485,etc.
• Designed for faster heat dissipation.
• Wall-mounted.

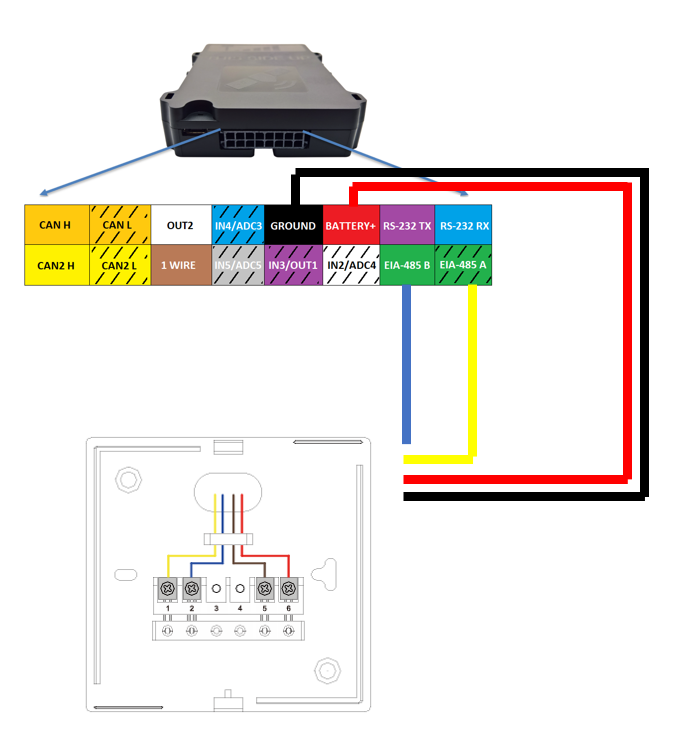

Pinout
- Red -----> Power
- Black -----> Ground
- Yellow -----> RS485 interface A
- Blue ----->RS485 interface B

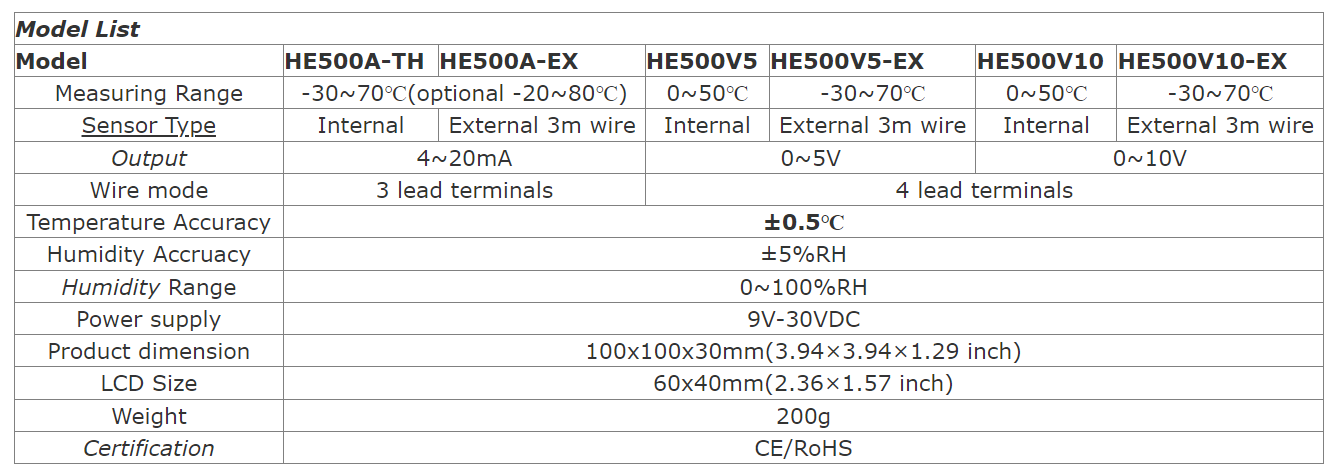

Technical Specification
notes
- It is solely compatible with SDK devices such as (XTCAN).
- It might not sending the reading and need to restart.
- The script named "XIRGO_MEAS_HE400SCR37_v3" mustbe inserted into the device configuration.
- then we check the script as follows:

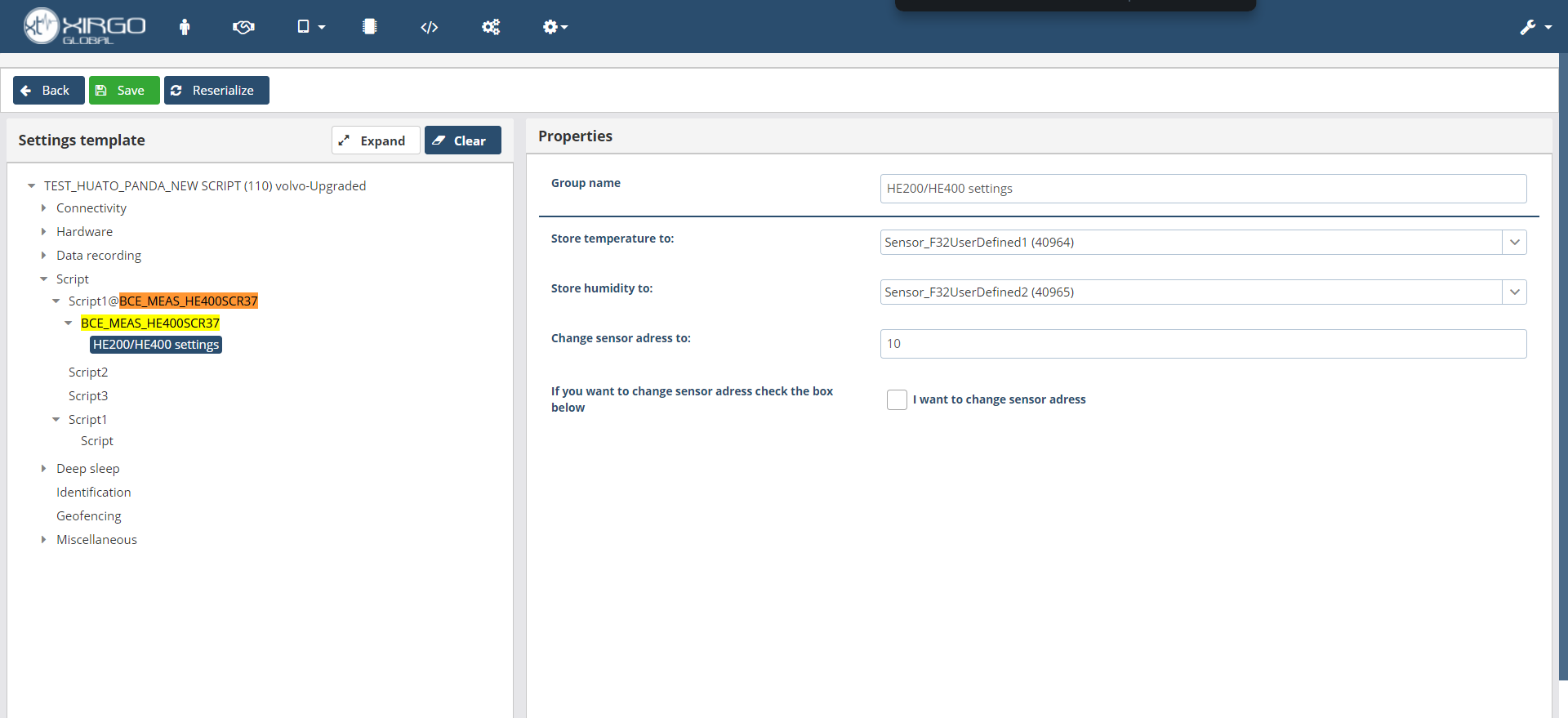

- insert script and edit the setting as shown in the picture

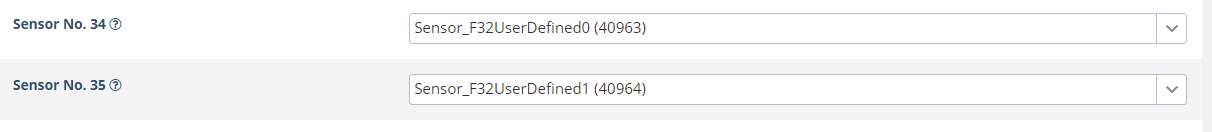

- add sensor parameters on data recording
