TSH202 (TER3)
TSH202 (TER3)

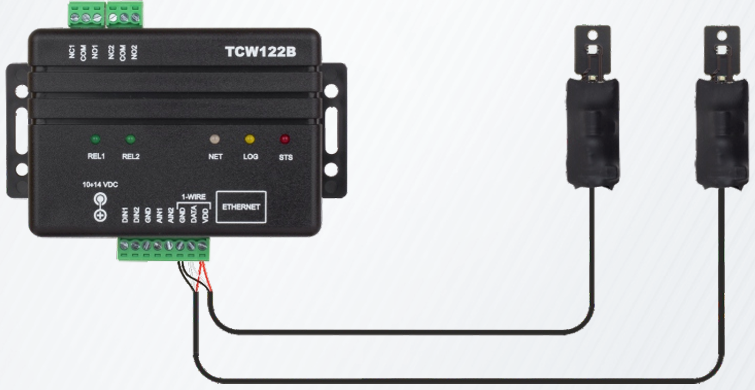

- humidity and temperature sensors with a 1-Wire interface.
- The device integrates basic elements plus signals processing, and provides a fully calibrated digital output.
- Humidity and temperature monitoring in building management systems.

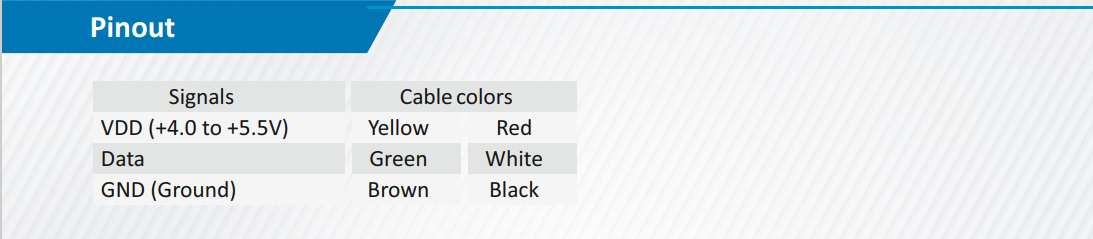

Pinout
The status of the device is shown by single LED, located on the front panel:
- If the LED blinks on period of 1 second, sensors works properly;
- If the LED blinks on period of 3 seconds, there isn't communication with the device;
- If LED doesn't blink, there isn't power supply.
Specification
notes
- This sensor compatible with BCE regulars devices (light & light+ & stcan 2g) only with 1-wire protocol
- The sensor is compatible with firmware
- Version G (GD11 & G011)
- Version S (SD1E & ST1E)

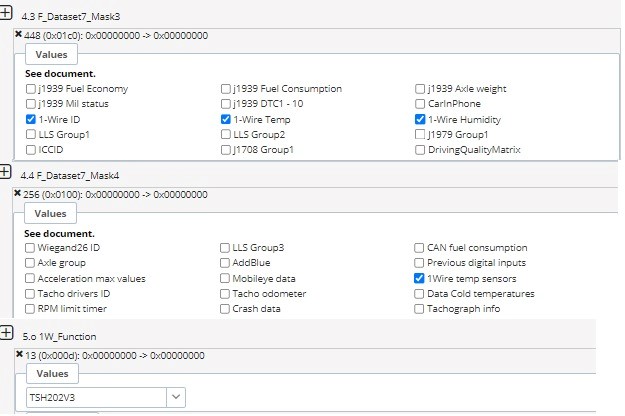

- Configuration requirements
- for teltonika devices it is compatible with B12 and C130 but and the devices must have
- Firmware ver.03.27.13.Rev.480.e
- Teltonika.Configurator_1.7.30_E.THS202_R.4
- this firmware and configurator not available online on teltonika wiki
