• Best Firmware For stcan Devices

                    -Version G (G011 & GD11)

                    -Version S (SDTM & SCTM & SD1E & ST1E)

                    - SDS5 firmware is the best one for can reading

• Worst Firmware For light+ Devices

                    -Version G (G00L & GD0L & G00V)

                    -Version S (SCRF & SDR0 & SDP1)

• Change any device Version Z or any other version except ( G& S )because it is EOL

• the most common of can types is J1939 and CAN Base B
  • J1939 don't required vehicle type file and it is compatible with heavy truck vehicles and Chinese models busses

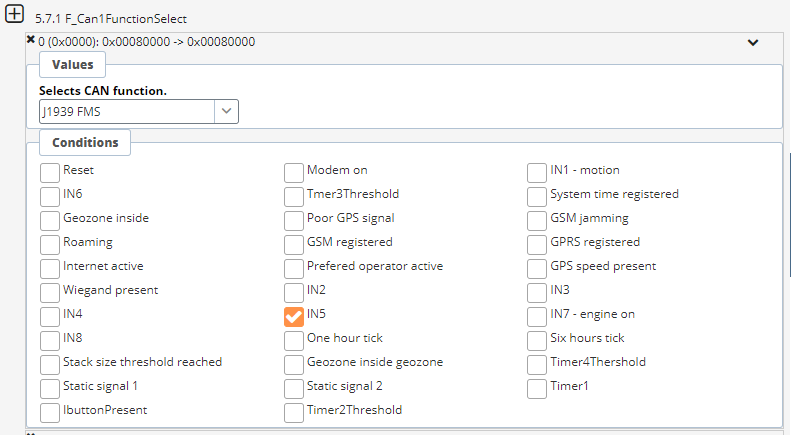

  • Devices of Version G cannot read if the CAN type is set to J1939. Therefore, we adjust it to CAN Base B and upload the CAN file named (J1939 FMS <VMID: 1634, Version: 1>). This serves as an alternative method to enable the device to read CAN as J1939.

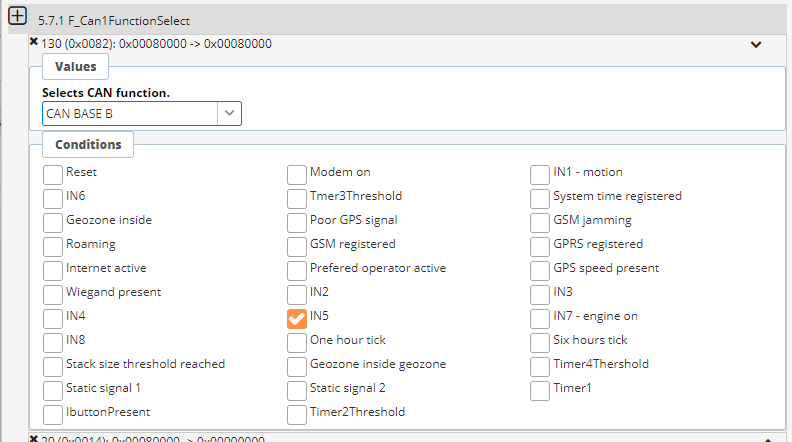

  • CAN Base B required vehicle type file and it is compatible with light vehicles

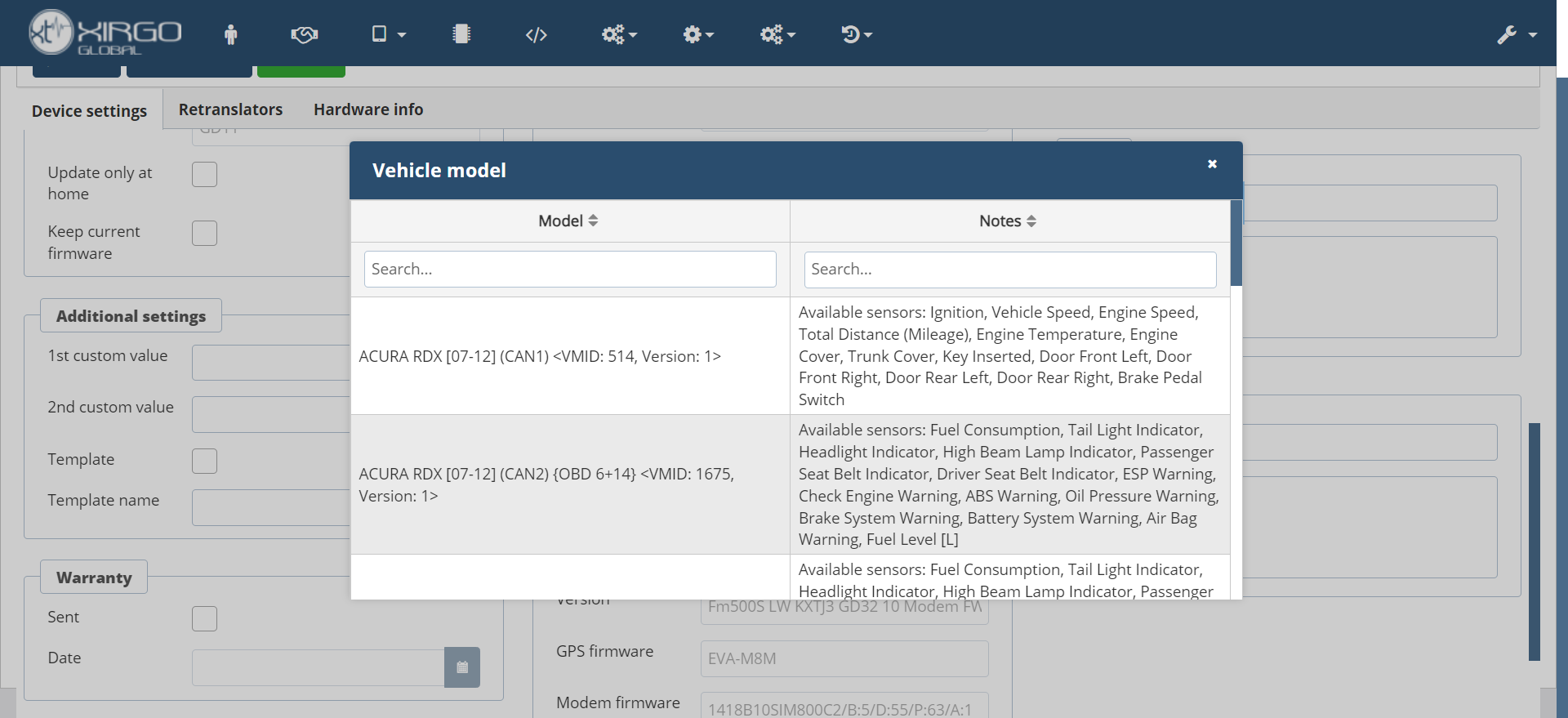

• We have the option to upload a file via the configuration settings depicted in the image


• During configuration adjustments, the initial step involves setting the first one to "CAN" type with the ignition turned on, and then configuring the second one to "sleep" mode with the ignition turned off, as shown
  • This is to prevent draining the vehicle battery or overloading the vehicle computer.

• Reference configuration: NEW-AlKHALIDI-Actros
• There exists an SDK version of Stcan which exhibits SDKdevice behavior (stcan 4g), allowing us to embed scripts within it.
• Firmware 122 is the only one compatible with tzone sensor forstcan-4g
• Check device led behavior on the following link: LED Behavior

‍
