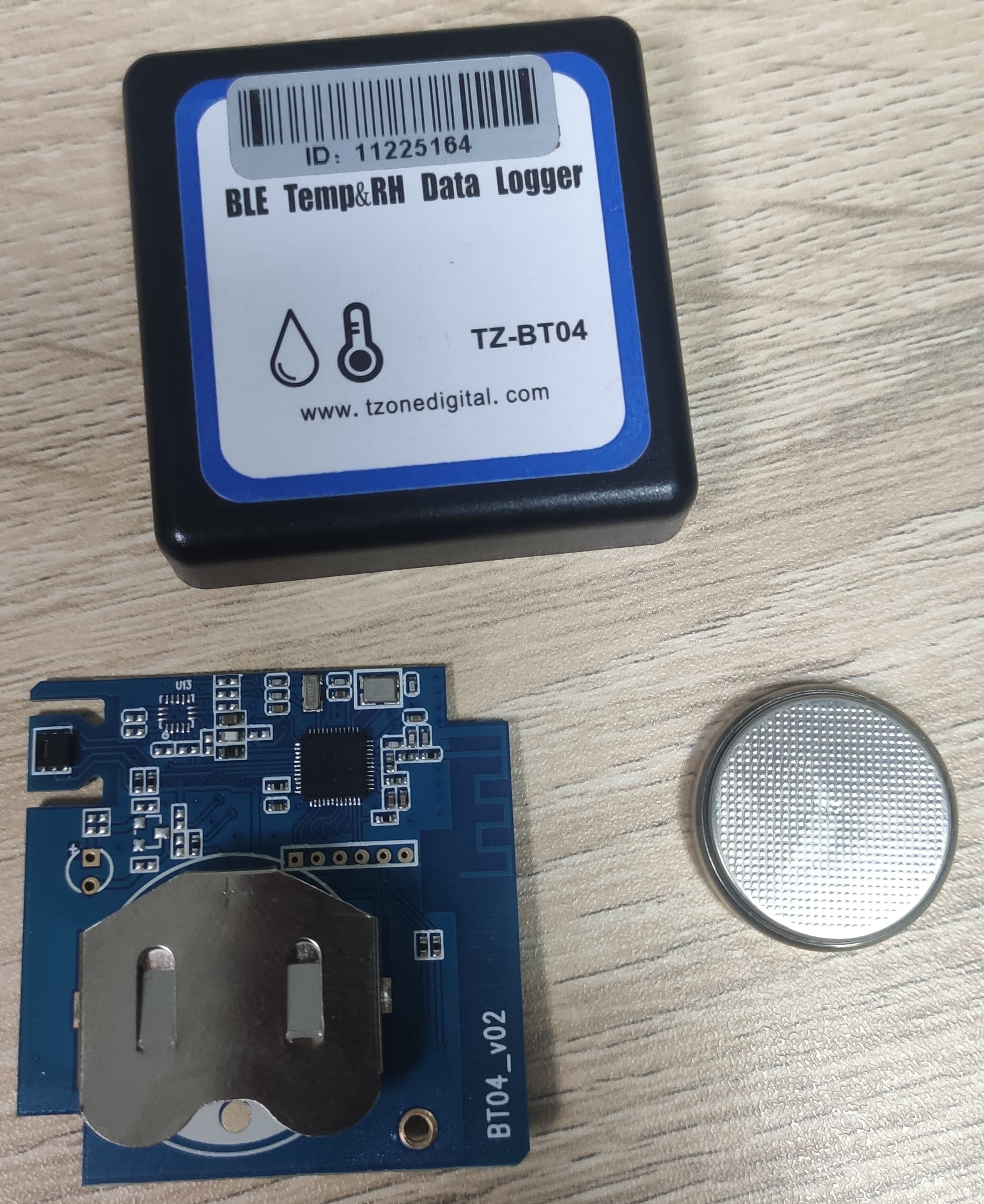

Tzone TZ-BT04 bluetooth
Tzone TZ-BT04 bluetooth
- TZ-BT04 is a Bluetooth Low Energy temperature and humidity data logger with the latest Bluetooth 4.1.
- Built-in, highly sensitive temperature and humidity sensor.
- It can store 12000 pieces of temperature and humidity data.
- Long-distance wireless transfer.
Pinout
- The sensor operates solely on an internal battery and functions via Bluetooth, eliminating the need for any wiring.
- some versions of the sensor feature an on/off button for user convenience.

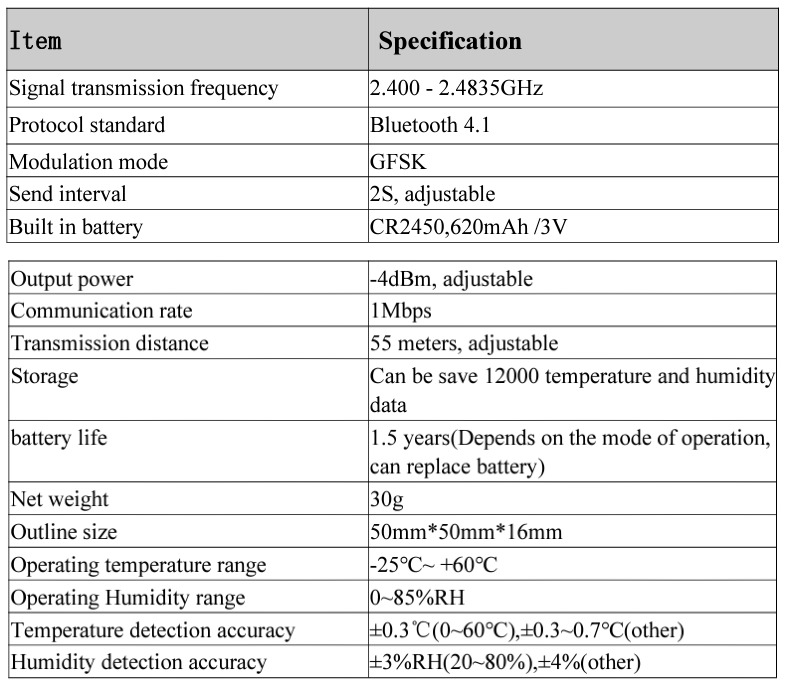

Technical Specification
.jpeg)
notes
- It is compatible with Teltonika devices with Bluetooth connections, such as B120
- We can connect up to 4 sensors to one device
- the configruation have to be edited such as follows:
- enable Bluetooth setting
- change connection mode to "TZ-BT04/05/05B sensor"
- enable parameters in I/O according to connected sensor
- we have to send the sensor ID to the device
- example: setparam 1201:123456
