TSH202 VA
TSH202 VA
Pinout
The status of the device is shown by single LED, located on the front panel:
- If the LED blinks on period of 1 second, sensors works properly;
- If the LED blinks on period of 3 seconds, there isn't communication with the device;
- If LED doesn't blink, there isn't power supply.
Technical Specification
notes
- This sensor is compatible with Ruptela devices with 1-Wire protocol
- We don't need to activate anything; just include parameters based on the number of sensors connected.

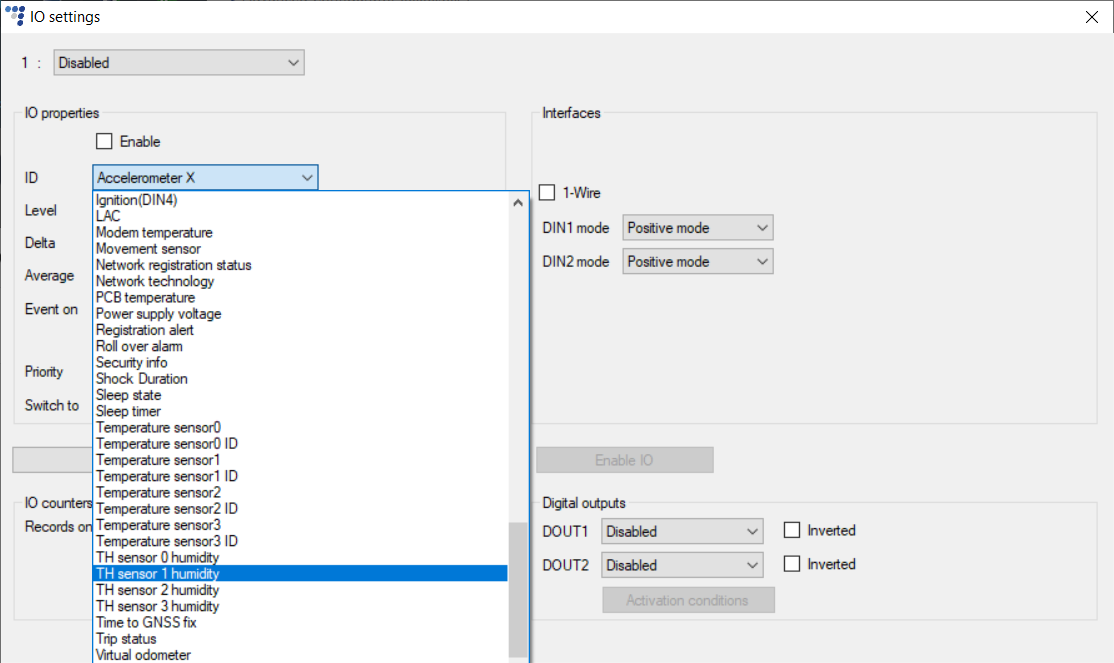

- we enable parameters as follows:
