BCE LIGHT+
all devicespin out
- Battery
- Power Source
- Ground
- Ground wire
- IN5
- for ignition/engine
- Out
- Relay, buzzer
- Digital Inputs
- based on the clients’ decisions .Ex: Door Sensor, Seatbelt sensor ,Panic ,RFID
- Analog Inputs
- analog inputs for changeable variables. Ex: Weight sensor, Load/Pressure sensor
- 1-Wire
- IButton ,temp & humidity “1 wire sensor” EX: TER3 ,Asong
- RS485
- Tzone Temp & Humidity sensor ,Soway Temp and Humidity ,Huato Temp and Humidity (For SDK Devices Only)

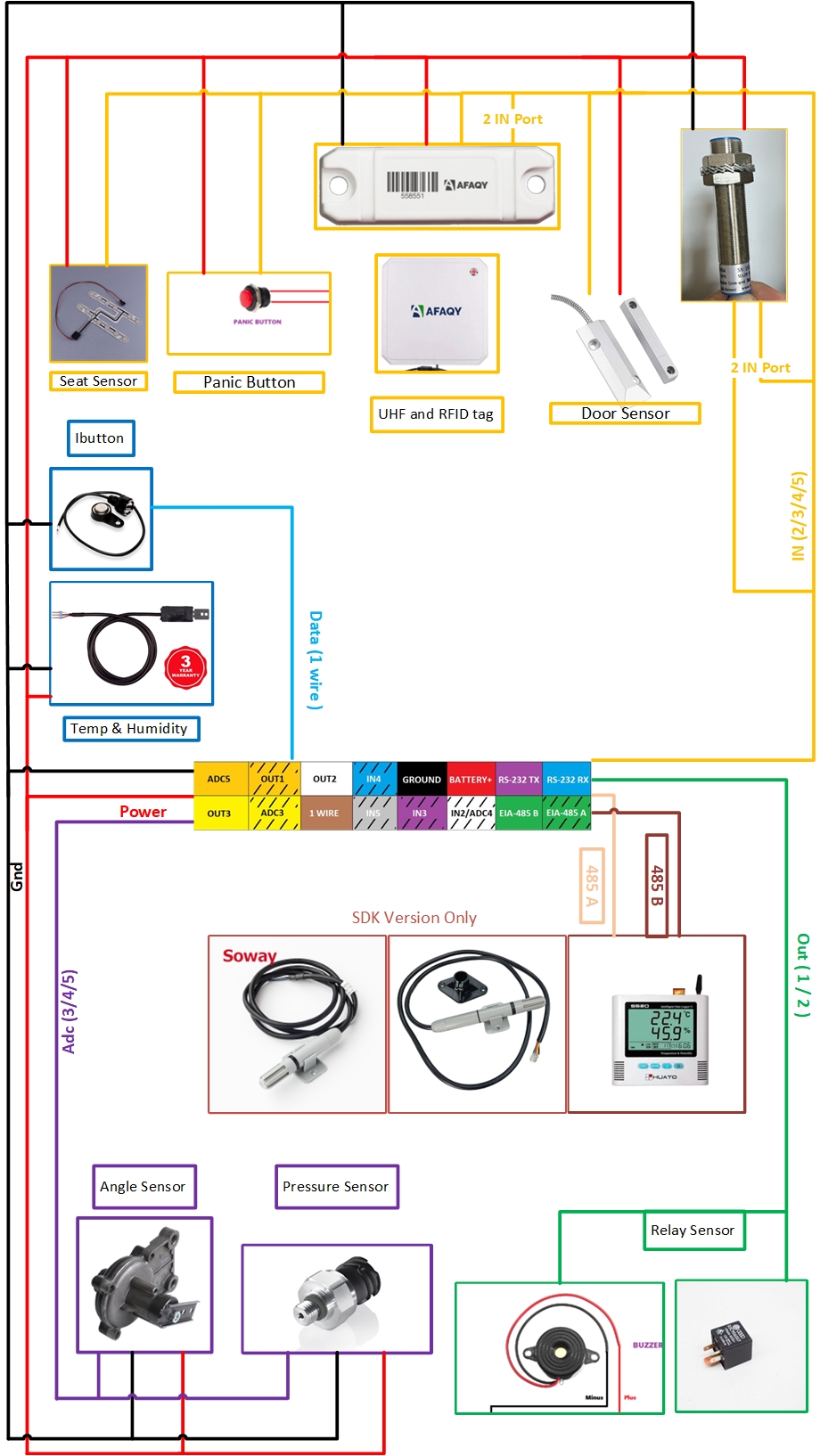

wiring scheme
