BCE XTCAN

all devices
pin out
device-img
  • Battery
    • Power Source
  • Ground
    • Ground wire
  • IN5
    • for ignition/engine
  • Out
    • Relay, buzzer
  • Digital Inputs
    • based on the clients’ decisions .Ex: Door Sensor, Seatbelt sensor ,Panic ,RFID
  • Analog Inputs
    • analog inputs for changeable variables. Ex: Weight sensor, Load/Pressure sensor
  • 1-Wire
    • IButton ,temp & humidity “1 wire sensor” EX: TER3 ,Asong
  • RS485
    • Tzone Temp & Humidity sensor ,Soway Temp and Humidity ,Huato Temp and Humidity
  • Can High and Low
    • for accurate readings from the vehicle itself such as odometer. We can get data from dashboard

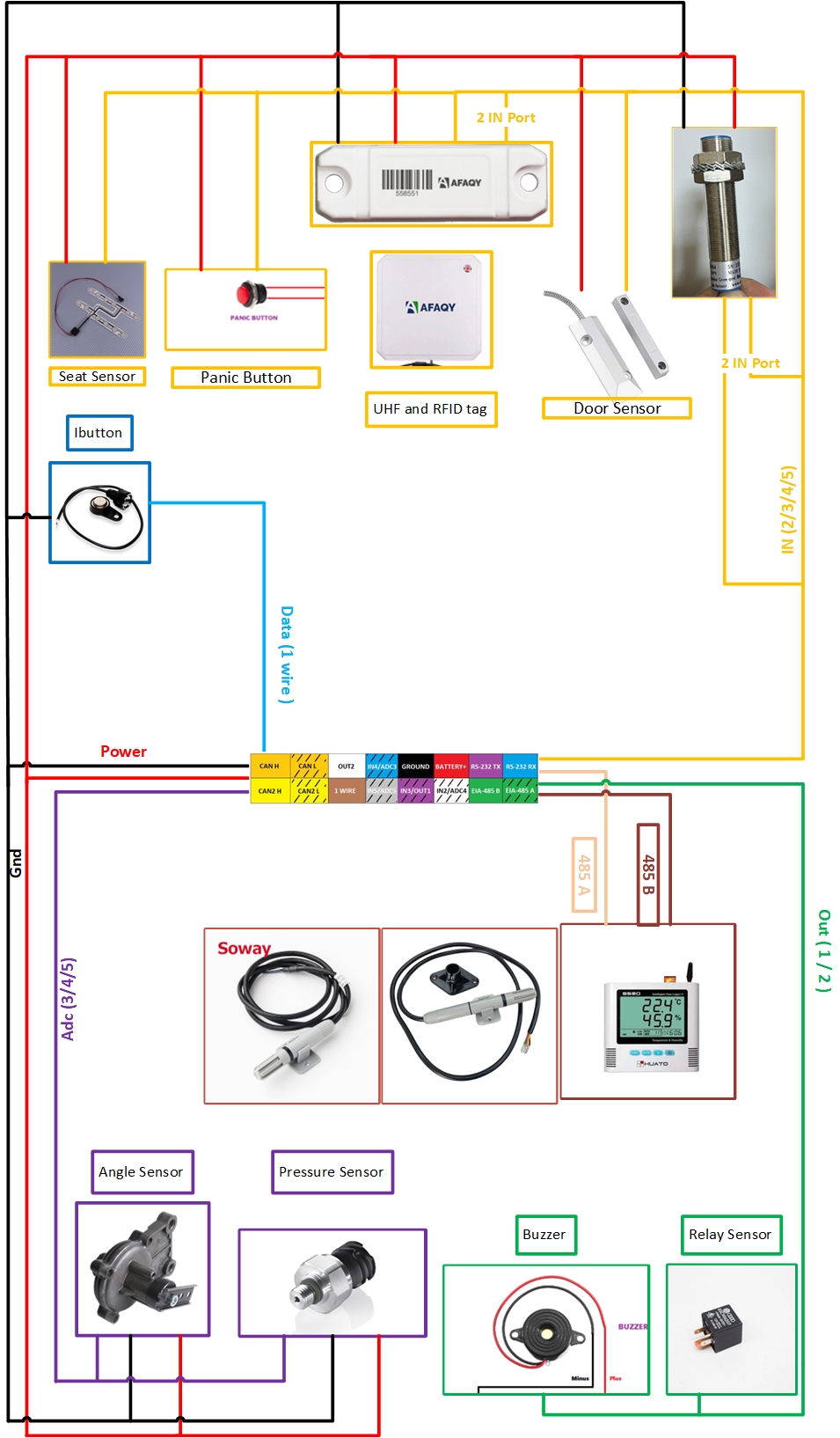

wiring scheme
screenshot-1
Connections Album
screenshot-1
screenshot-2
screenshot-3
screenshot-1
